Sensors & Measurements

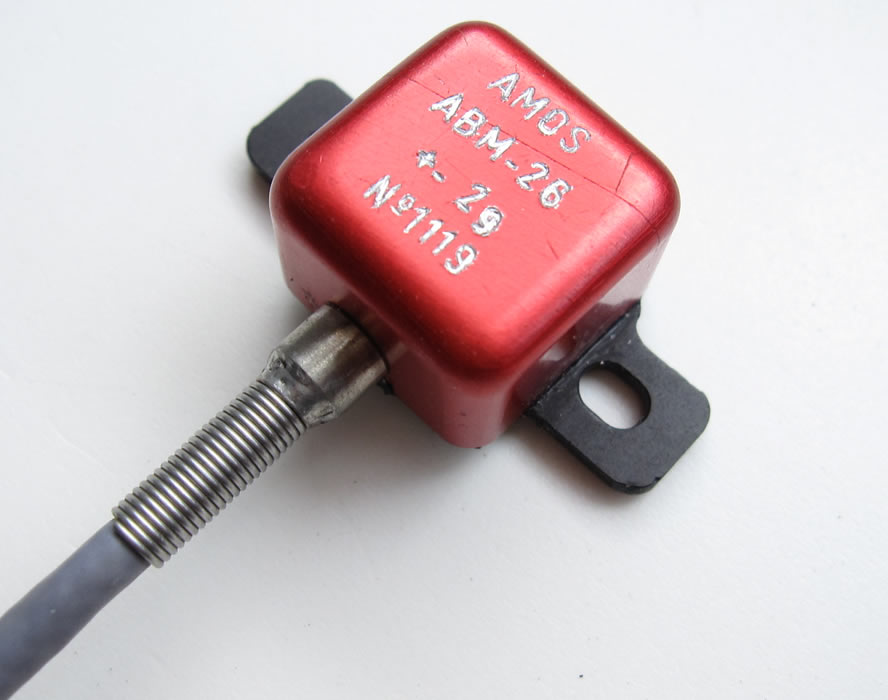

Accelerometers ( also for Crash test )



Chip resistive, 15 X 15mm, static and dynamic, integrated Amplifier
image-1
Chip- resistive Sensor elements in small dimensions. Suitable for absolute static ( "0"Hz ) and dynamic measurements. The Device weighs only a few Grams. Applicable  up  to   +125°C   in  ranges   from   0   to   ±2g and ±500g. Gas- Damping and overload stops up to ±2000g.
image-1

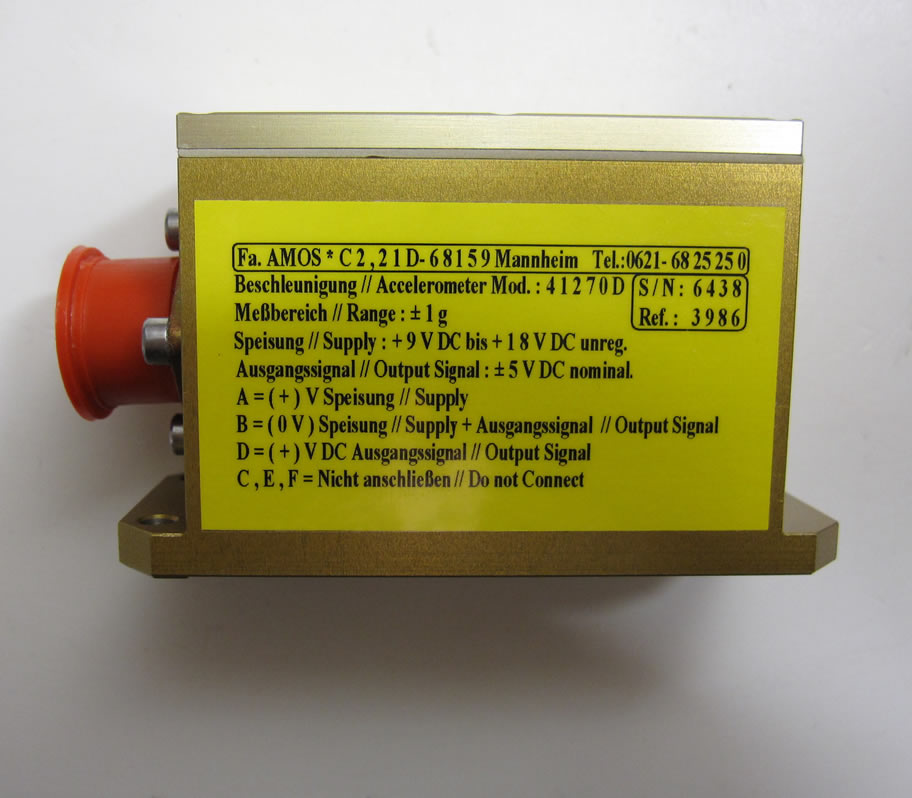

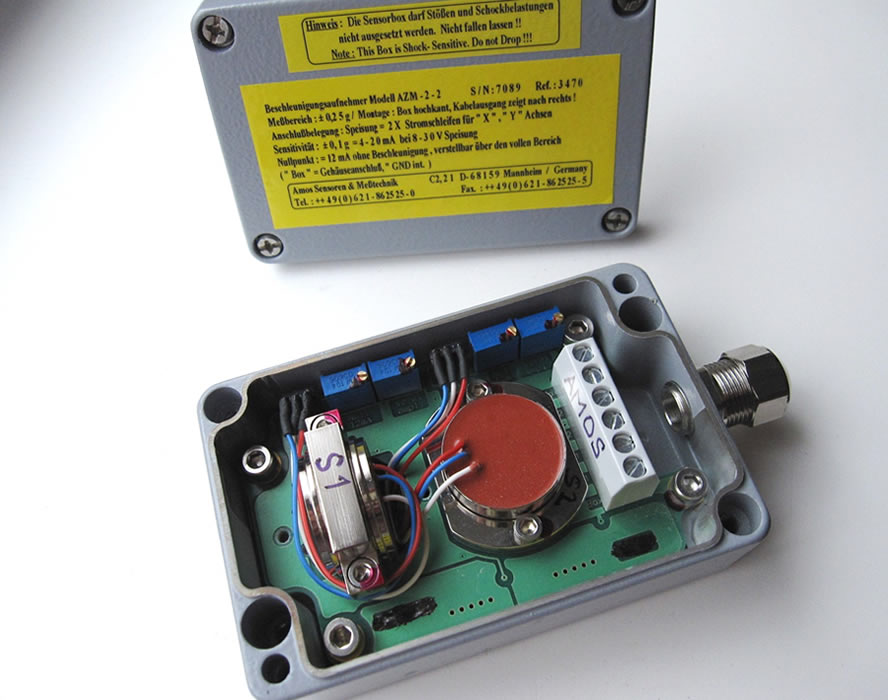

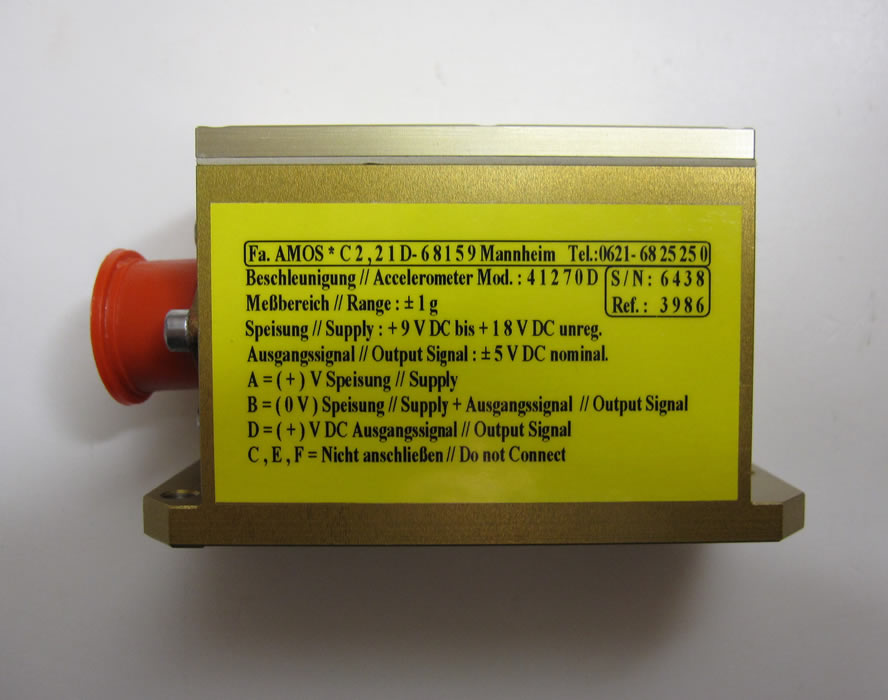

Servo und Chip capacitive, Resolution 10-6, dynamic, Angle speed, ATEX
image-1
High accurate Servo or Chip- capacitive sensing element. Ranges from 0 to ±0,05g up to ±10g. High resolution up to 10-6g. and integrated conditioning with ±5V / 4 - 20mA output signal. Useable for absolute static ( "0"Hz ) and dynamic application of 300Hz. Overload protected for ±200g. Ranges at ±1g also ATEX compatible.
image-1

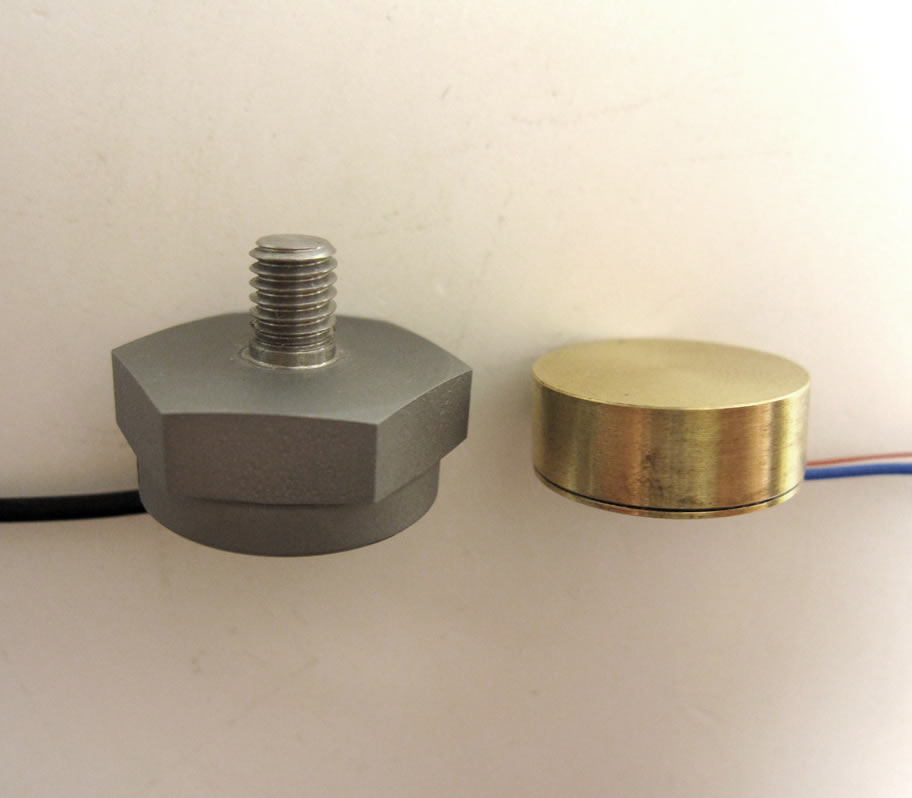

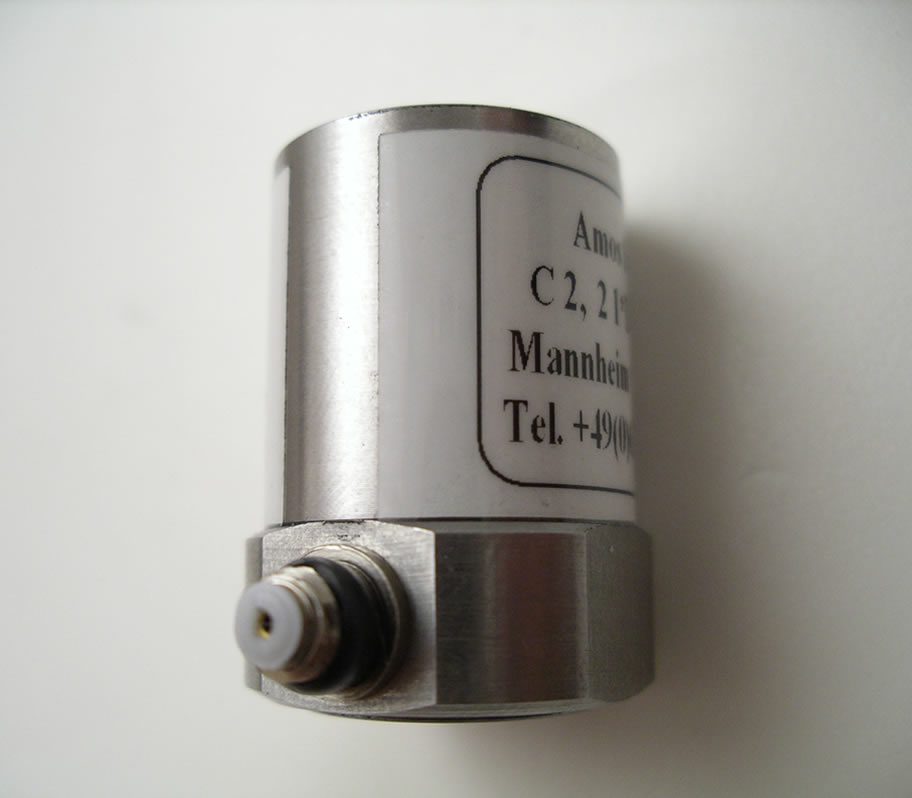

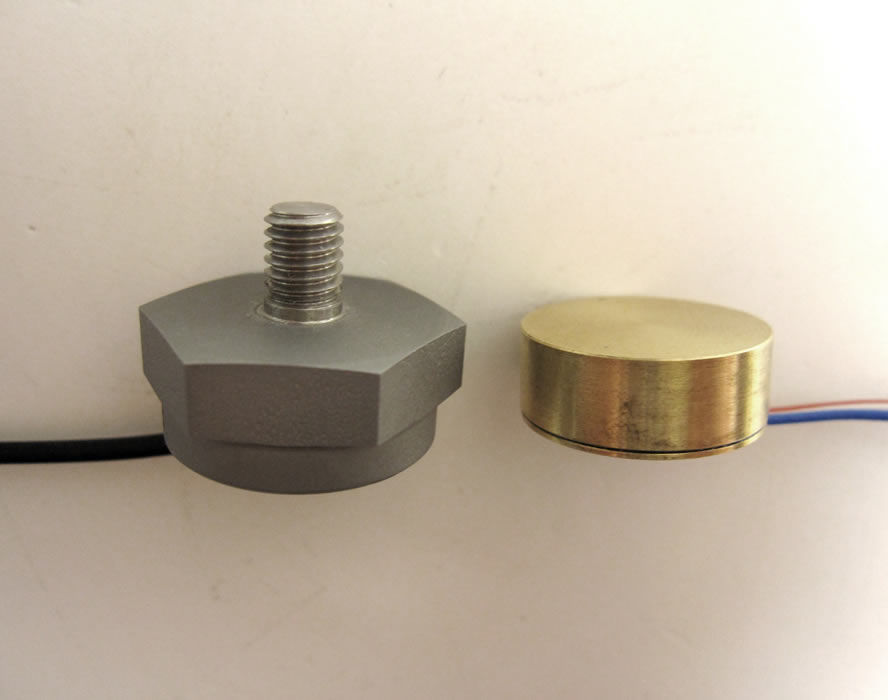

Piezoelectric, Miniature, dynamic up to 50 kHz, integrated Electronic
image-1
Piezoelectric sensing element. Specially suitable for dynamic application as high as 50kHz. Available with Charge or Voltage signal output. Sub miniature sizes with external charge amplifiers for 4 - 20mA signal, calibration instruments, power supplies, alarm functions and multichannel Systems are available.
image-1

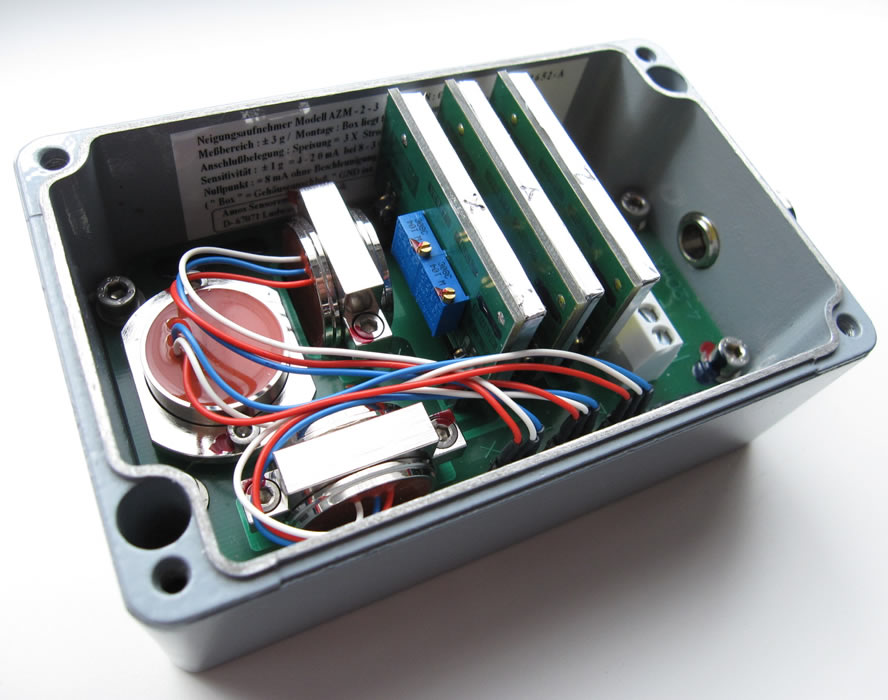

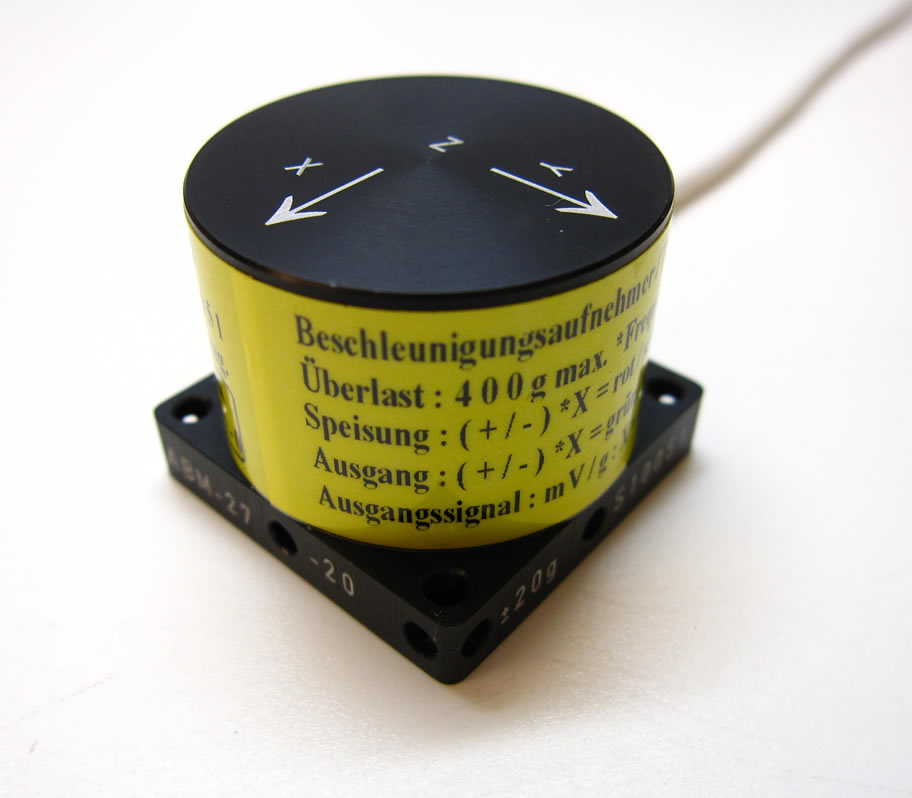

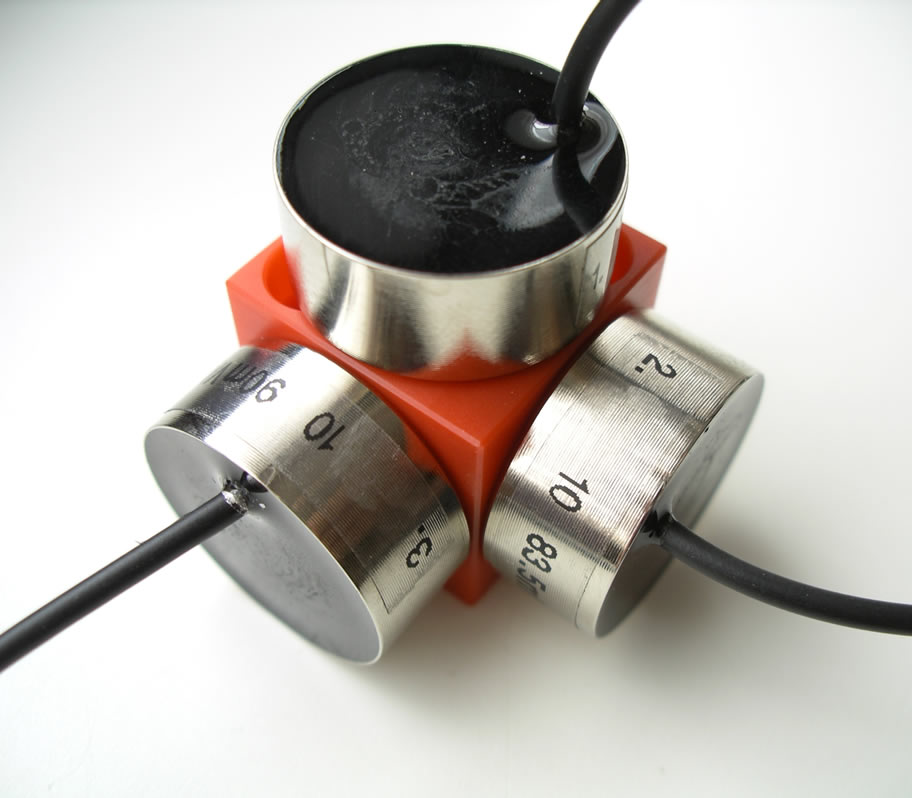

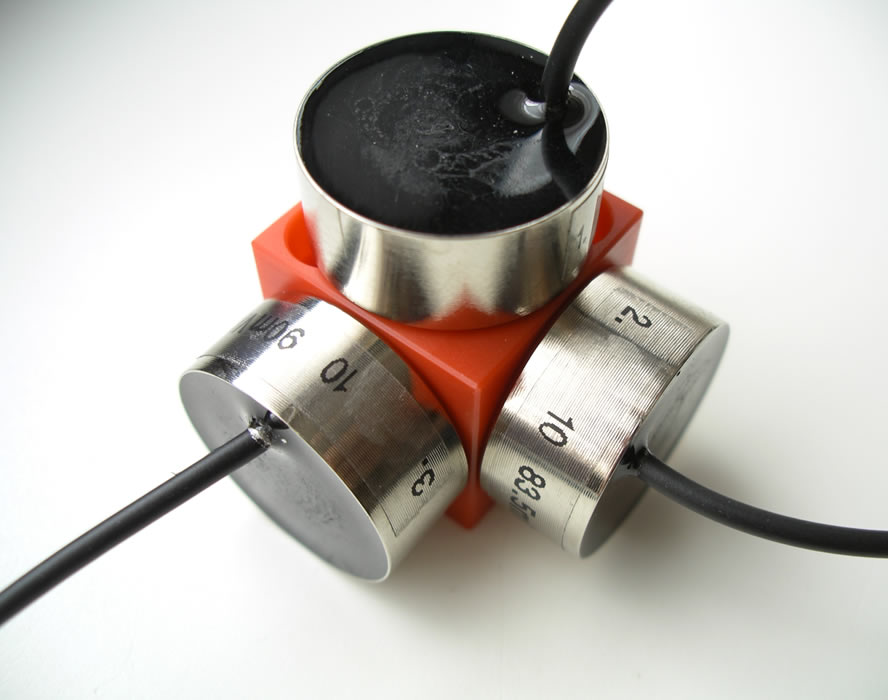

Triax capacitive, high overload, high resolution, Signalconditioning
image-1
Capacitive sensing element. Air damped and overload protected in all directions to ±10000g. Ranges from 0 to ±3g up to ±100g. Non- Linearity 0,2%. High resolution 10-3g, Current and Voltage output in a special hermetically sealed housing. Very cost effective.
image-1

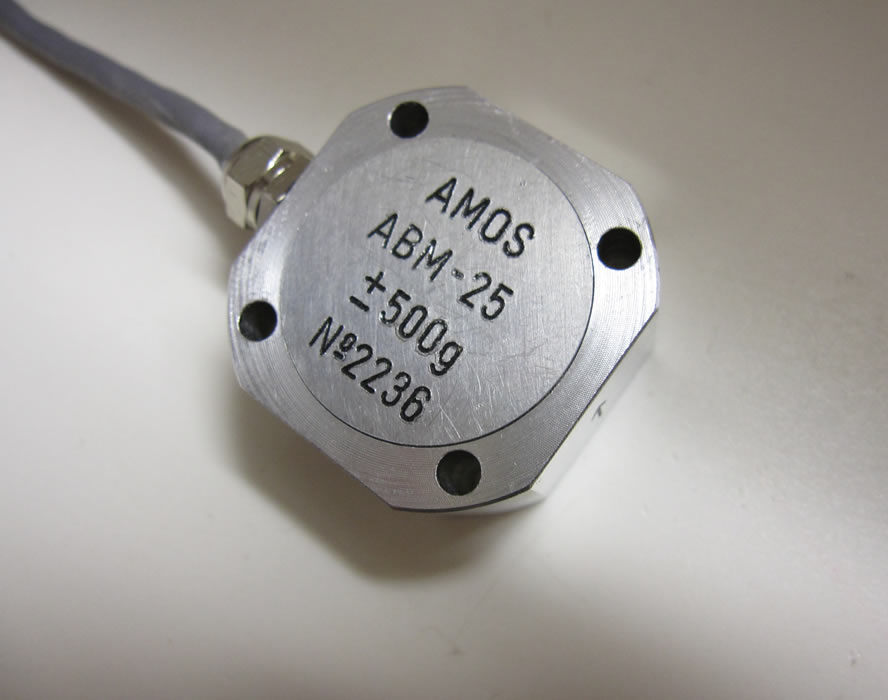

Model ABM - 25 - XXXX

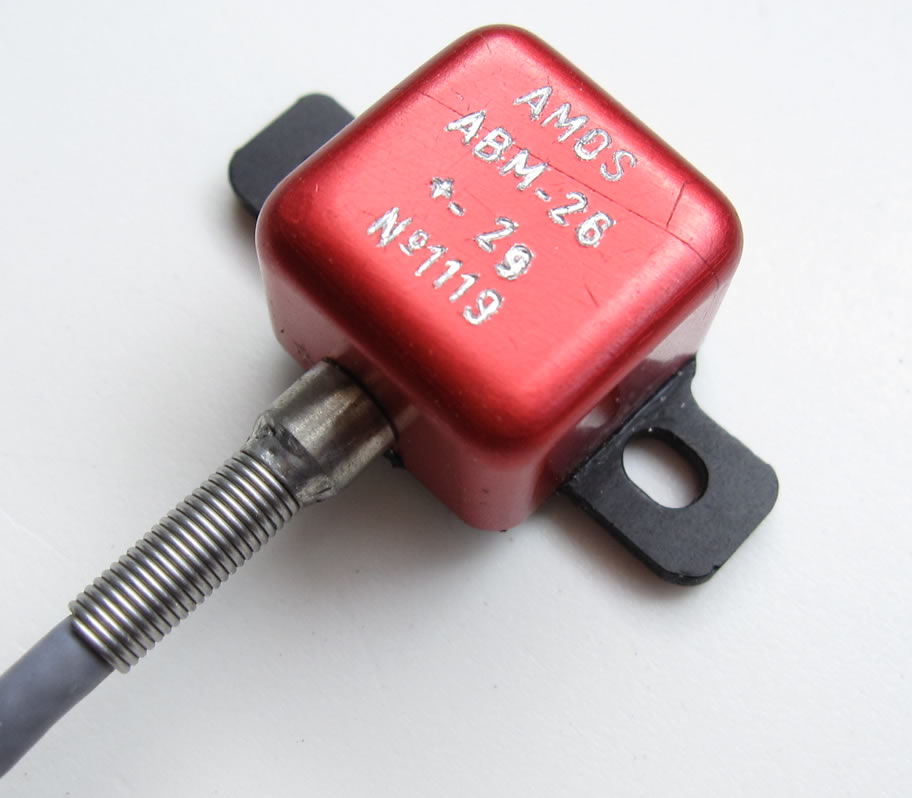

Model ABM - 26 - XXXX

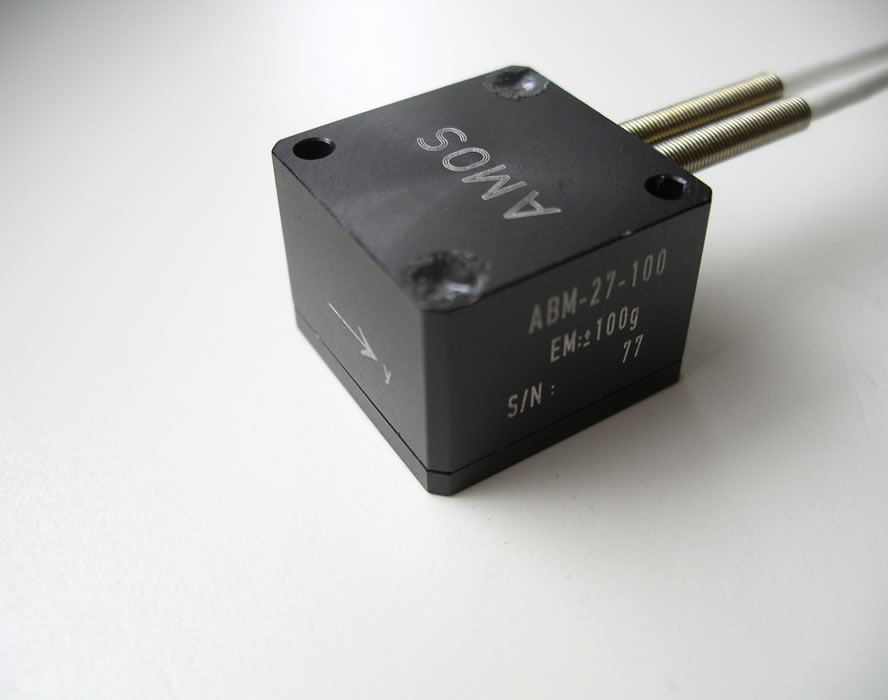

Model ABM - 27 - XXXX
image-1
image-1
image-1
Chip- Resistive
Ranges ± : 0 - 2g - 1000g
Frequency : 0 - 2500Hz
Signal : ±2V
Chip- Resistive
Ranges ± : 0 - 2g - 1000g
Frequency : 0 - 2500Hz
Signal : ±2V
Chip- Resistive, Triax
Ranges ± : 0 - 2g - 1000g
Frequency : 0 - 2500Hz
Signal : ±2V

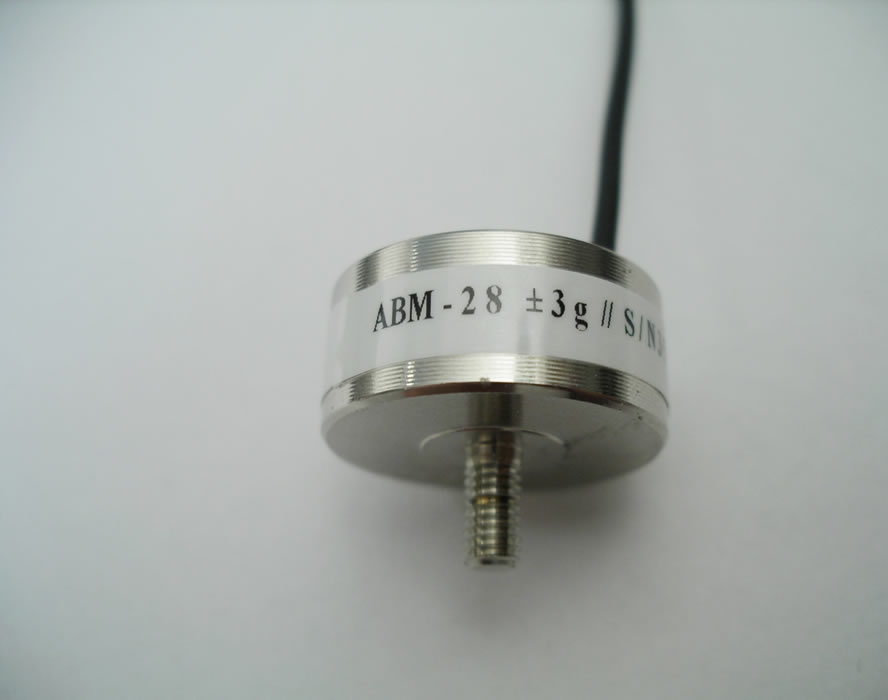

Model ABM - 28 - XX
Model ABM - 28 - XX
Model ABM - 28 - XX
image-1
image-1
image-1
Capacitive
Ranges ± : 0 - 0,25g - 50g
Frequency : 0 - 550Hz,
Signals : ±4V / 4 - 20mA
Capacitive, Triax, Mounting block
Ranges ± : 0 - 0,25g - 50g
Frequency : 0 - 550Hz,
Signals : ±4V / 4 - 20mA
Capacitive, Triax, hermetically
Ranges ± : 0 - 0,25g - 50g
Frequency : 0 - 550Hz,
Signals : ±4V / 4 - 20mA
Model ABM - 28 - XXX
Model ABM - 29 - XXX

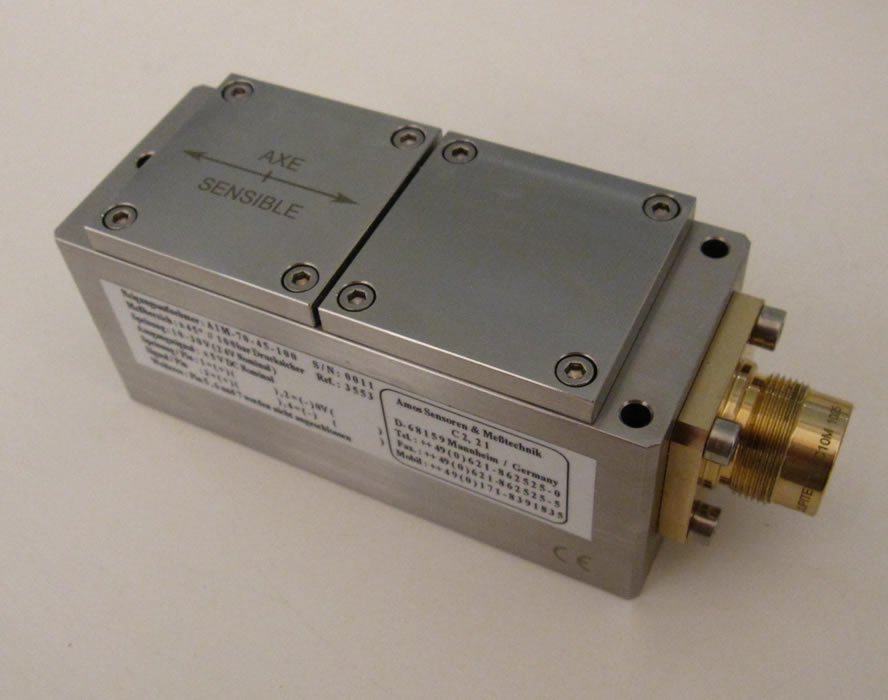

Model ABM - 80 - X - Biax
image-1
image-1
image-1
Capacitive, Biax, hermetically
Ranges ± : 0 - 0,25g - 50g
Frequency : 0 - 550Hz,
Signals : ±4V / 4 - 20mA
Capacitive
Ranges ± : 0 - 0,25g - 100g
Frequency : 1Hz - 1000Hz,
Signals : ±4V / 4 - 20mA
Servo, extremely stable
Ranges ± : 0 - 0,05g - 1g
Frequency : 0 - 10Hz,
Signals : ±5V / 4 - 20mA
Model ABM - 80 - 100 - ATEX
Model ABM - 88 - X

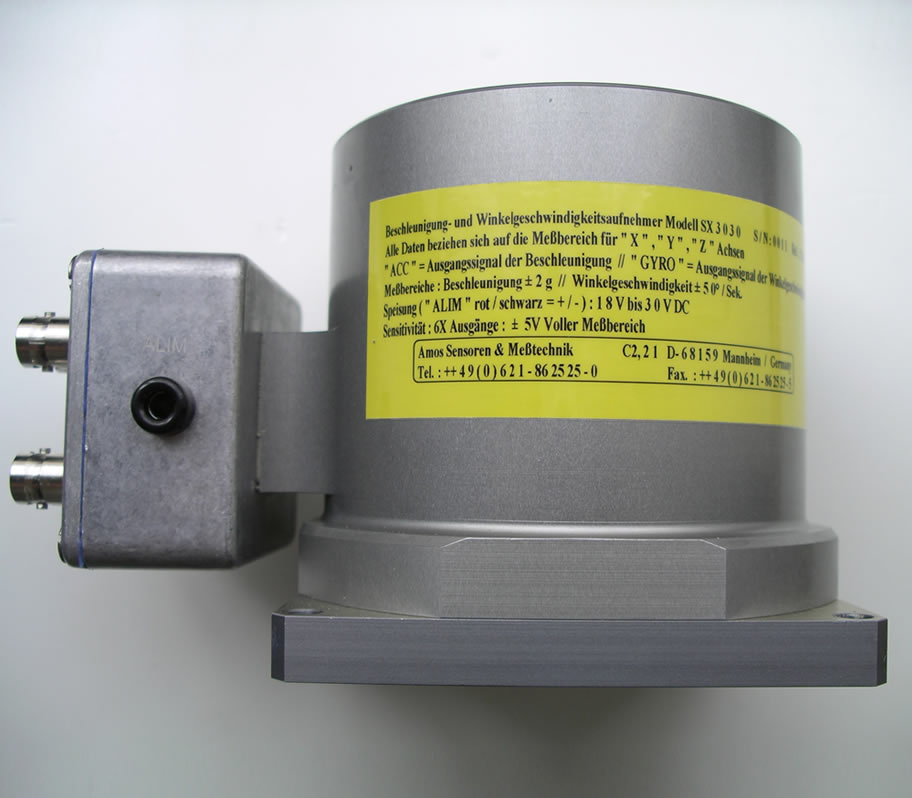

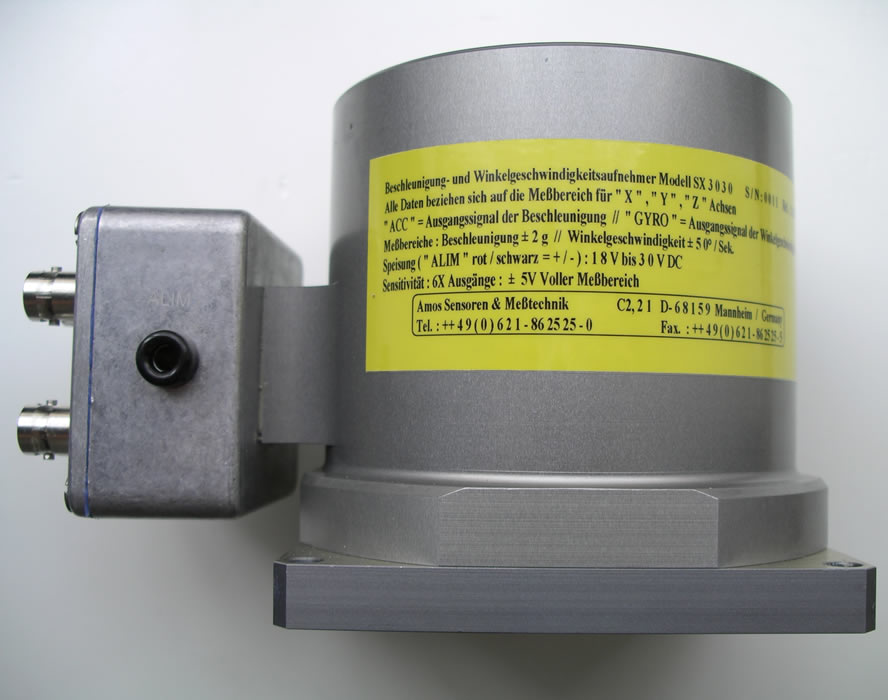

Model ABM - 3030 - XX
image-1
image-1
image-1
Servo, extremely stable
Ranges ± : 0 - 0,05g - 1g
100bar Pressure safe, ATEX
Signals : ±5V / 4 - 20mA
Servo, extremely stable
Signal :
Linear Proportional to the Angle
Otherwise as Model ABM - 80
Chip, Triax Gyro, very stable
Angle Speed 110°/s
Acceleration : ± 10g
Signals : ±5V / 4 - 20mA
