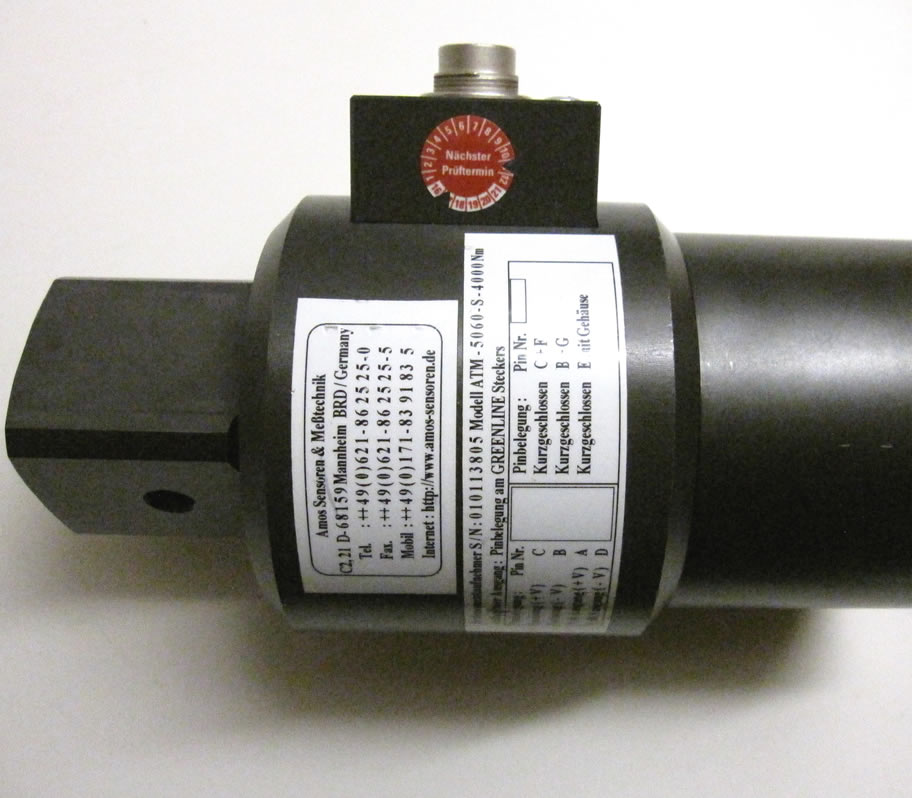

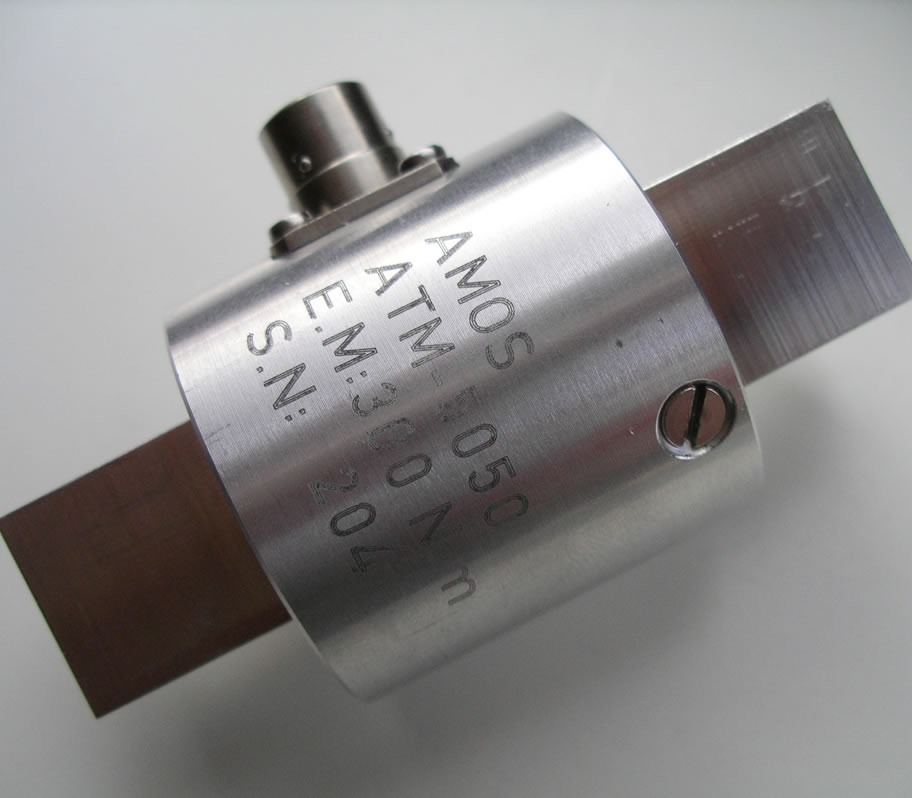

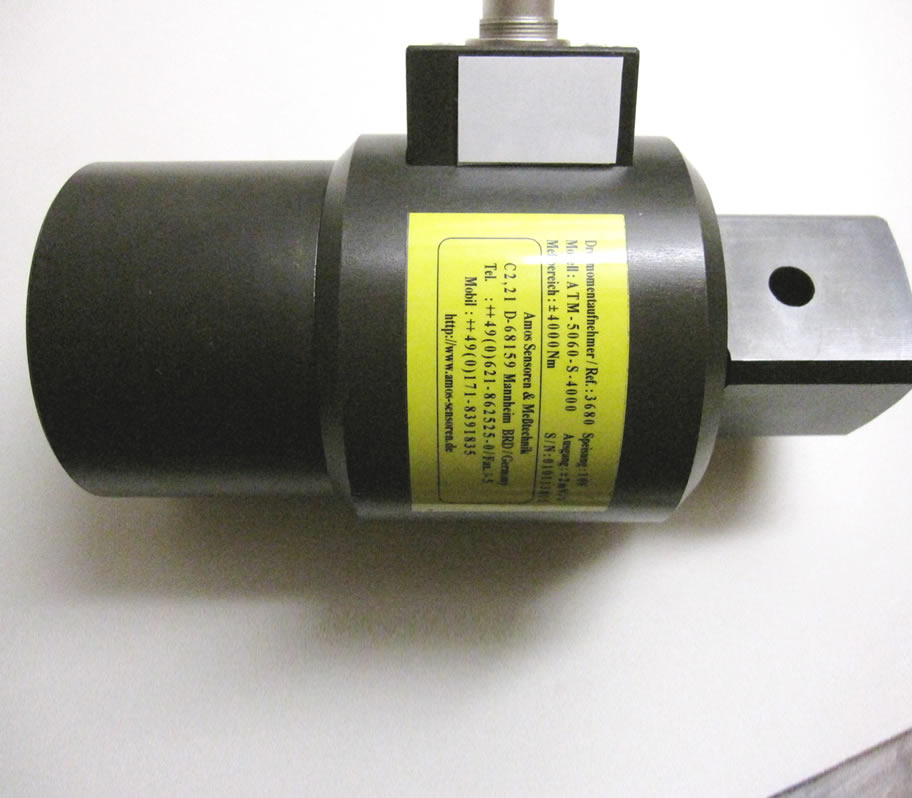

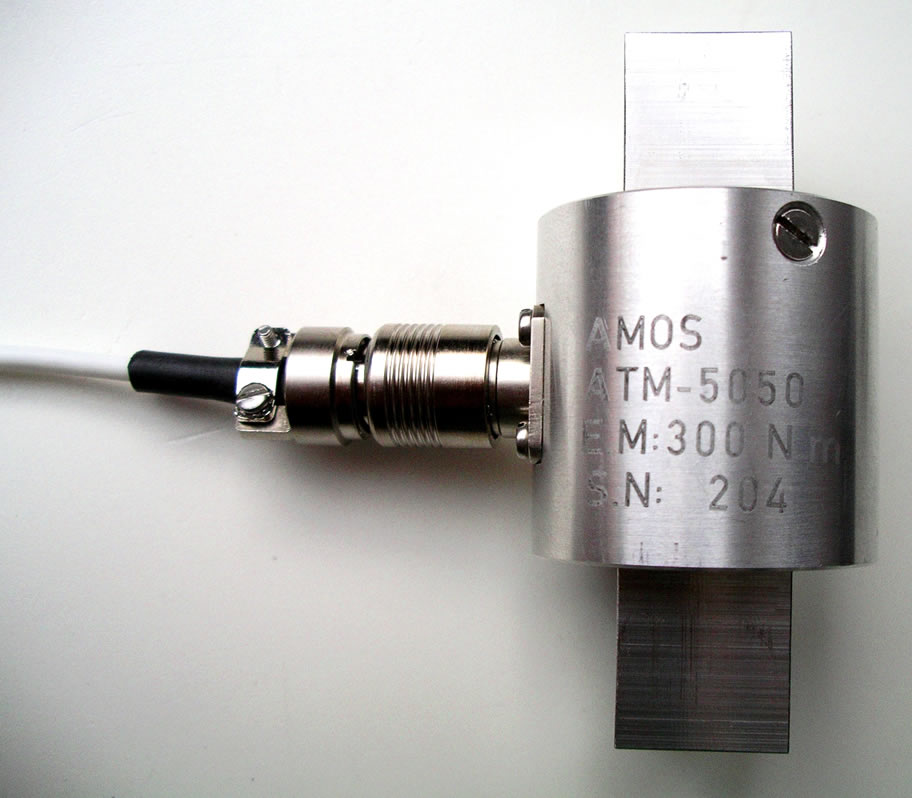

These Torque Meters are based on Foil- Gages giving a ± analog output Signal direct proportional to the torque and its direction. The mechanical torque is injected over two ends of square or round shafts. External or integrated Electronics is providing a current Signal of to 4 - 20mA or up to ±5Vsignal.

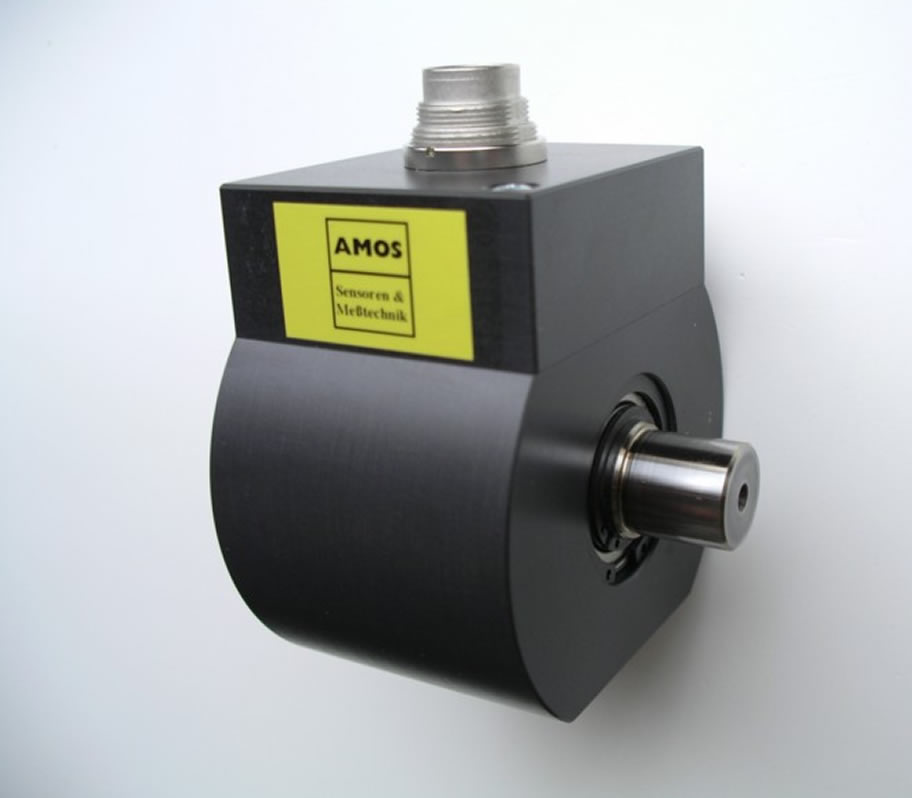

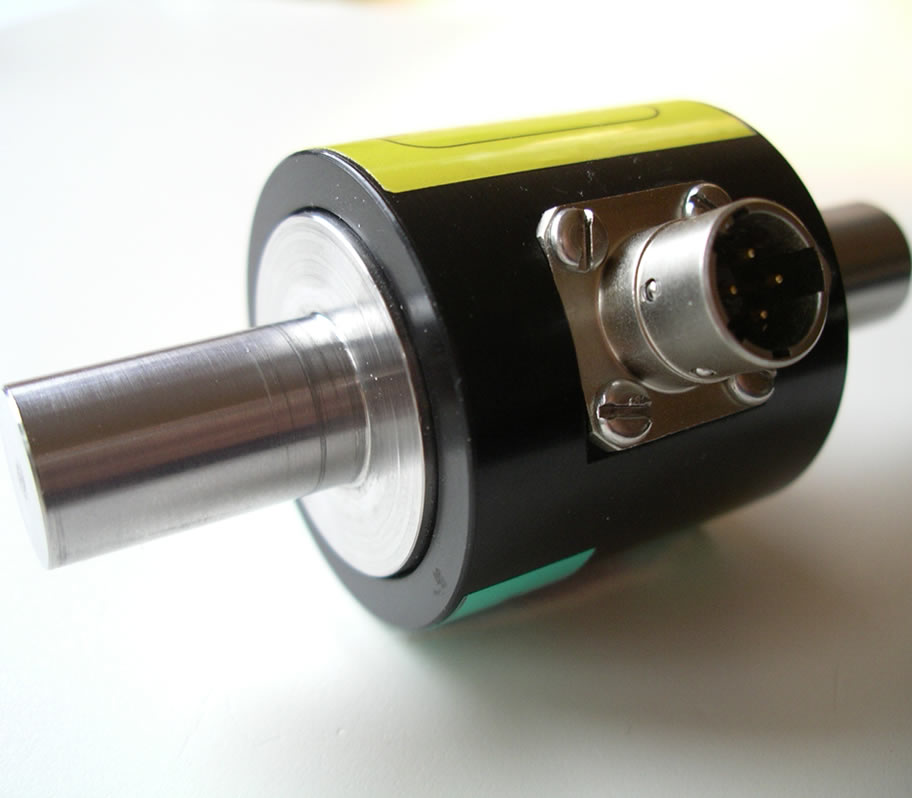

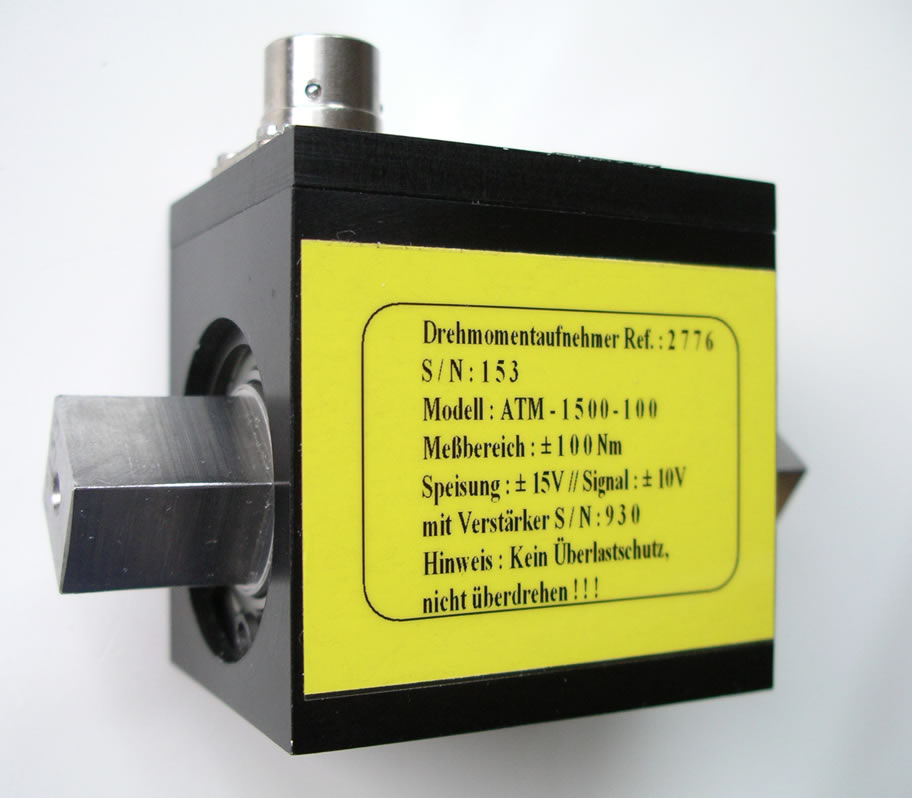

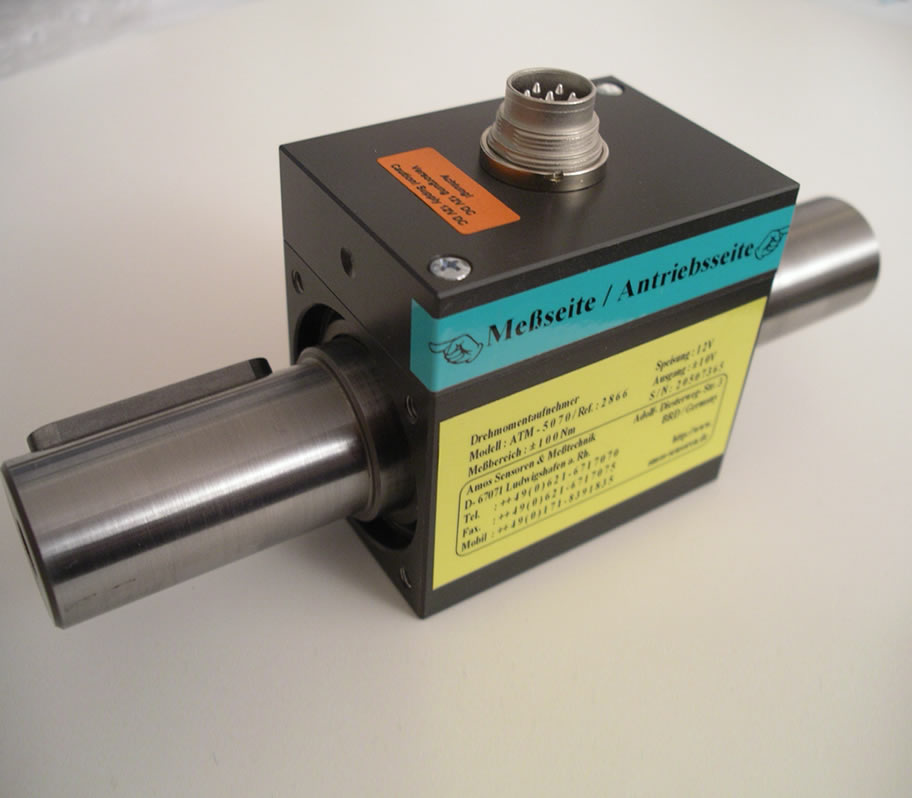

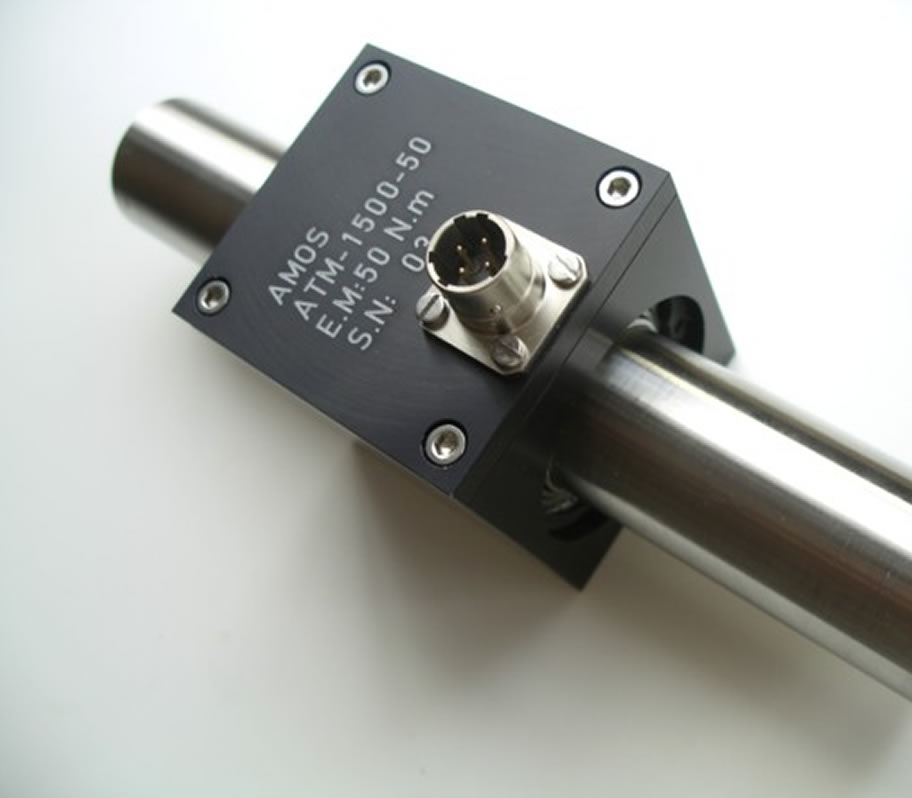

A torque sensitive shaft based on the above mentioned technology is mounted in a special housing which enables also dynamic measurements up to 20000r.p.m.. The integral Electronics provides a ±10V Signal over a non contact optical method. Options: 360° Angle and r.p.m. TTL signal.

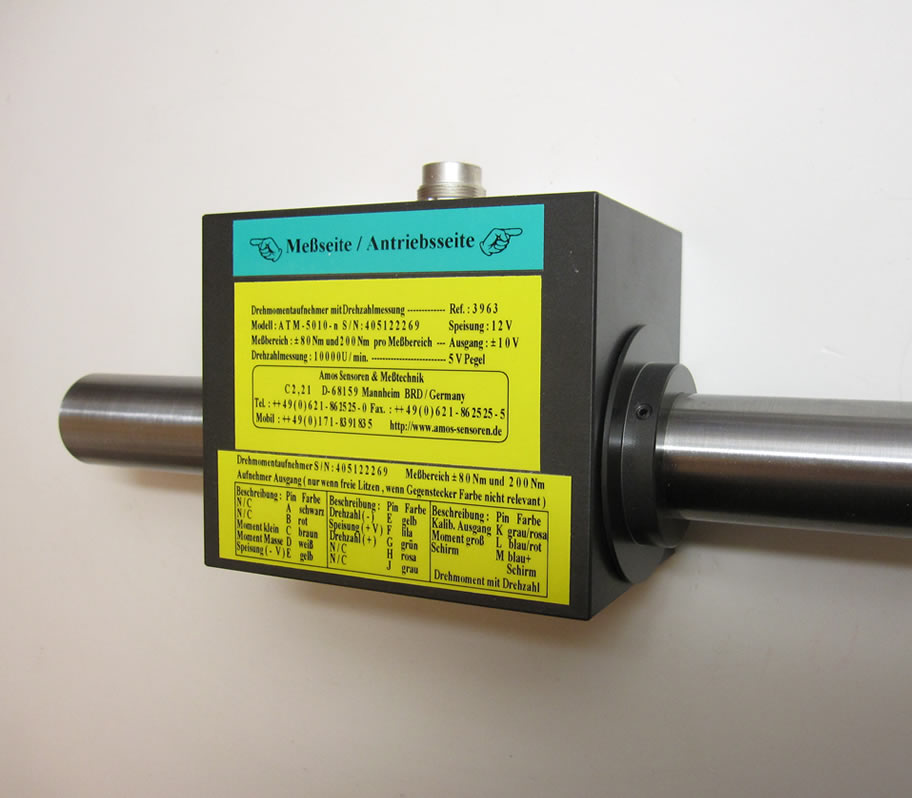

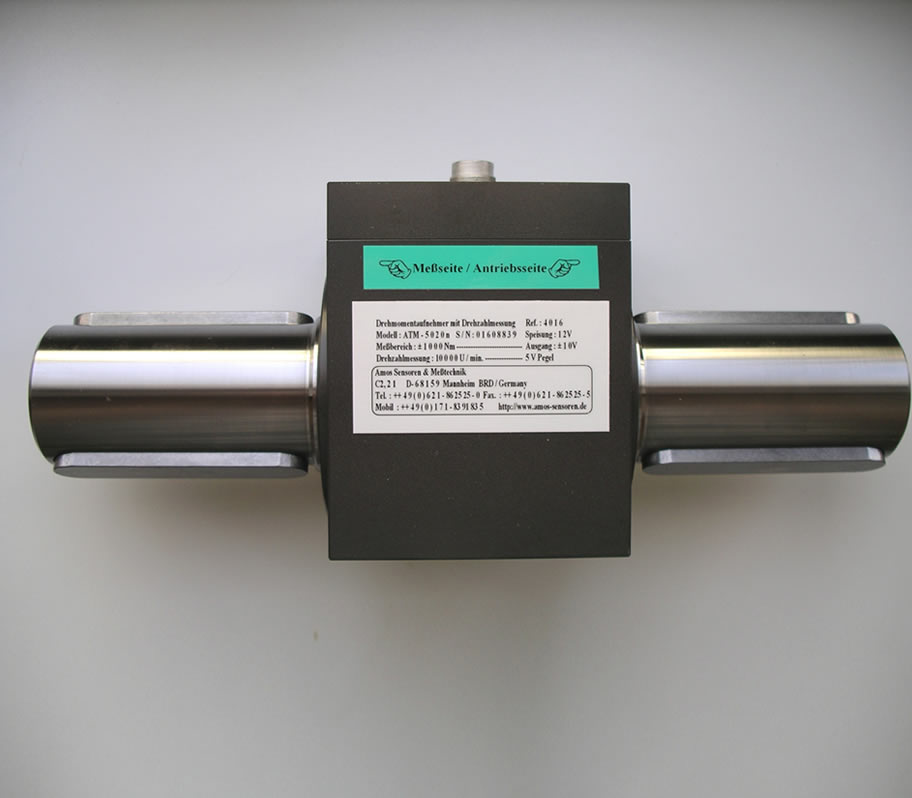

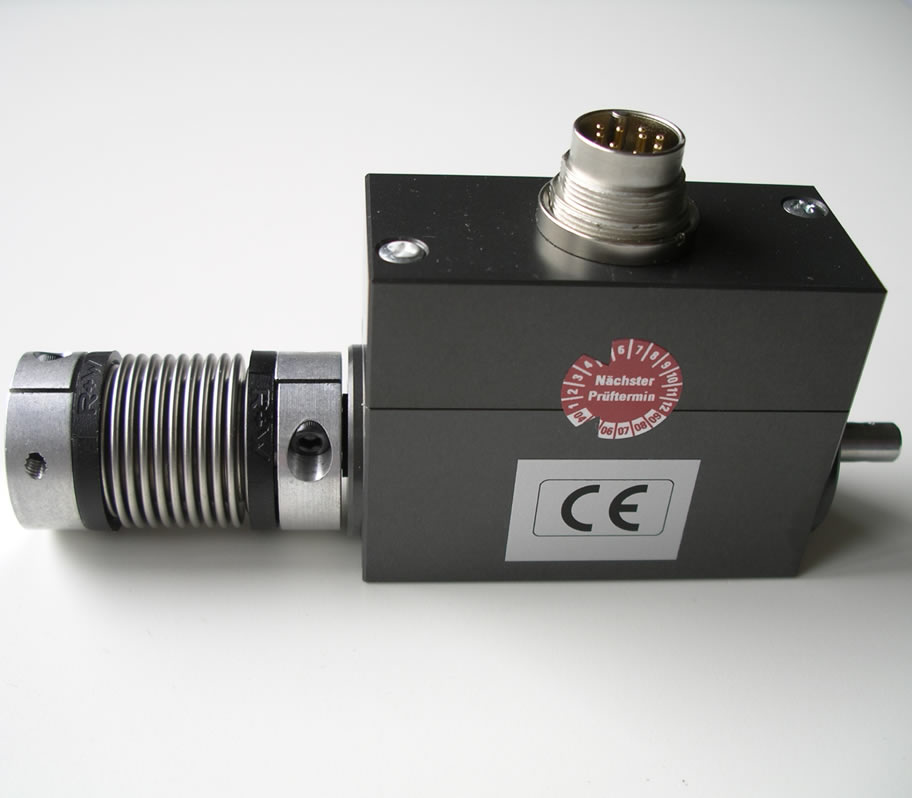

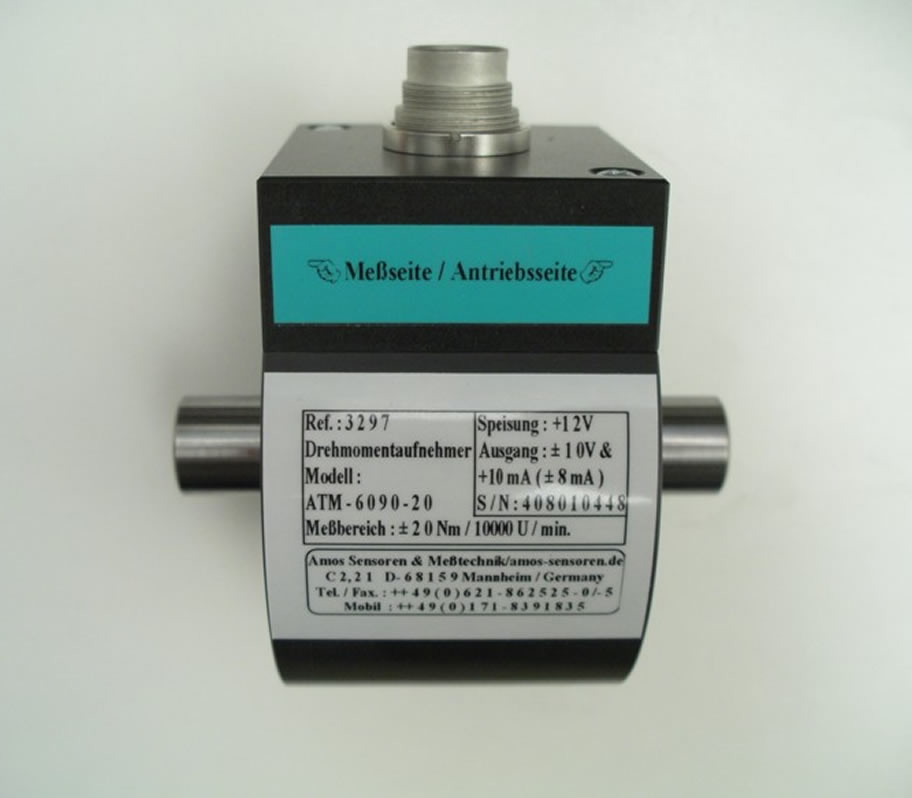

These units are based on the above mentioned Technology. Up to 10000r.p.m in a narrow housing. Optionally including an integrated digital Torque Value display. Signal outputs of ±5V und ±8mA. A different Series includes a double torque range output Signal in one housing. This ensures a high resolution over the Full Scale range. Options : Angle or RPM output and shaft coupling elements.

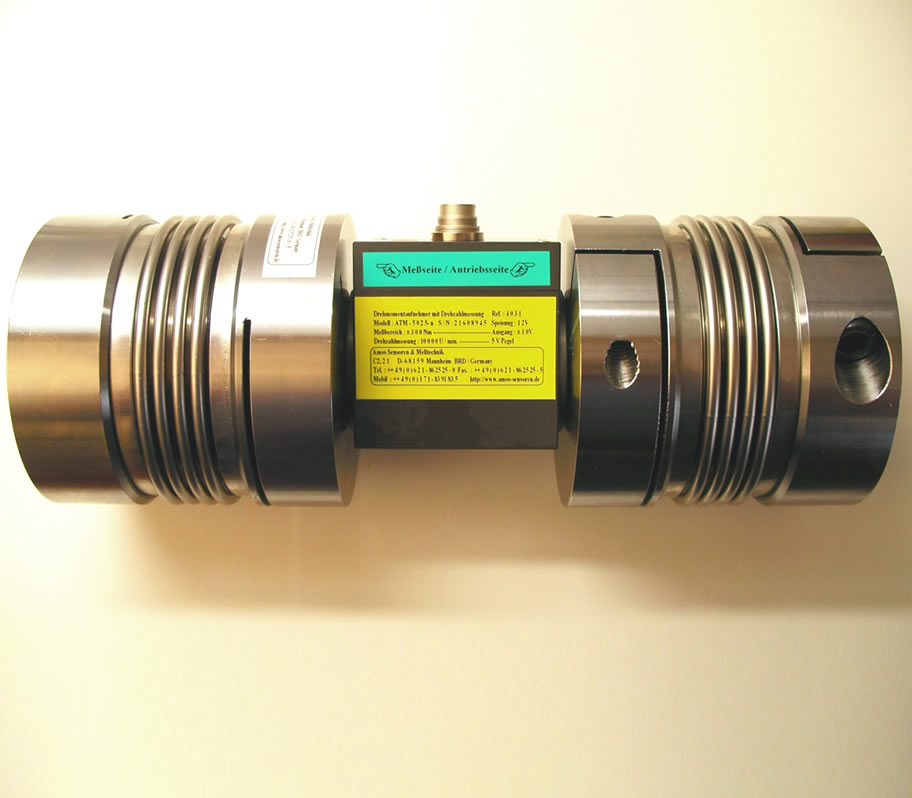

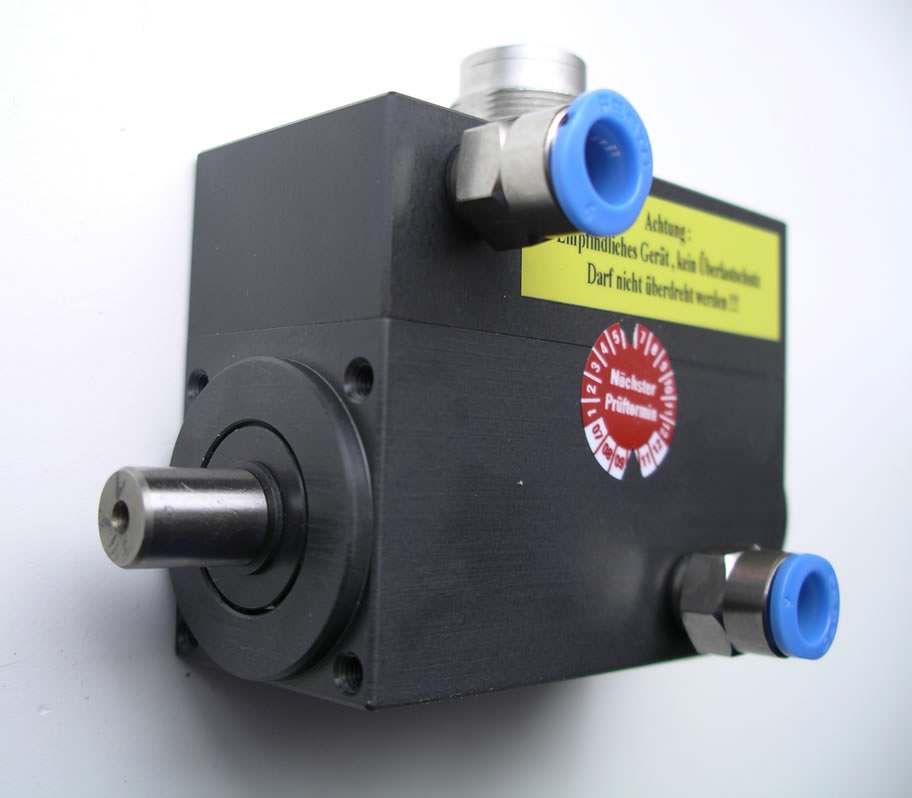

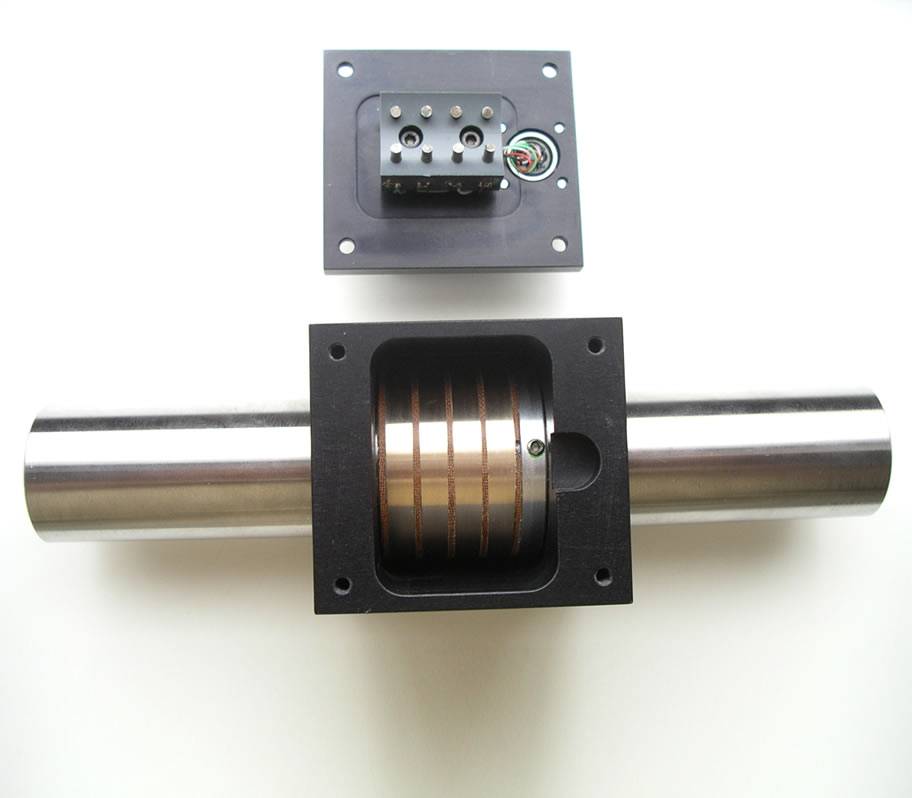

Additionally we offer customised Options. Hereby also Shaft Splines, Flexible shaft coupling elements, Ventilated housings, Slip Rings for direct low noise signal transmission, double screened Cables, Oil and Splash Water protected housings IP65, Vibration compatible components for rough environments, DKD normed Calibration external power supplies and Signal conditioning.

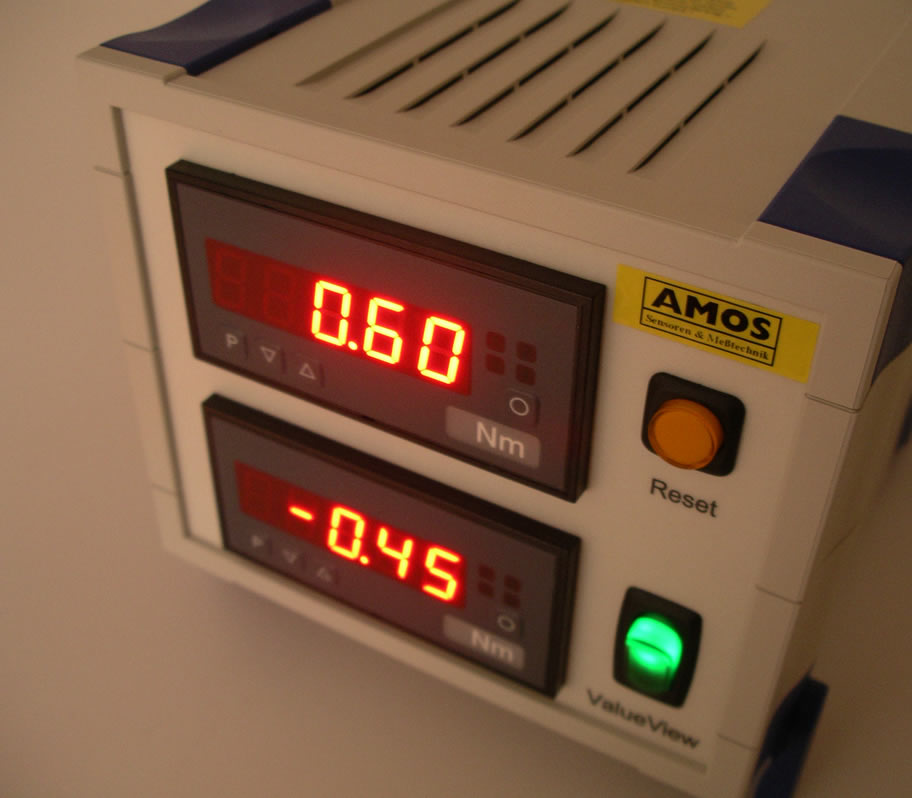

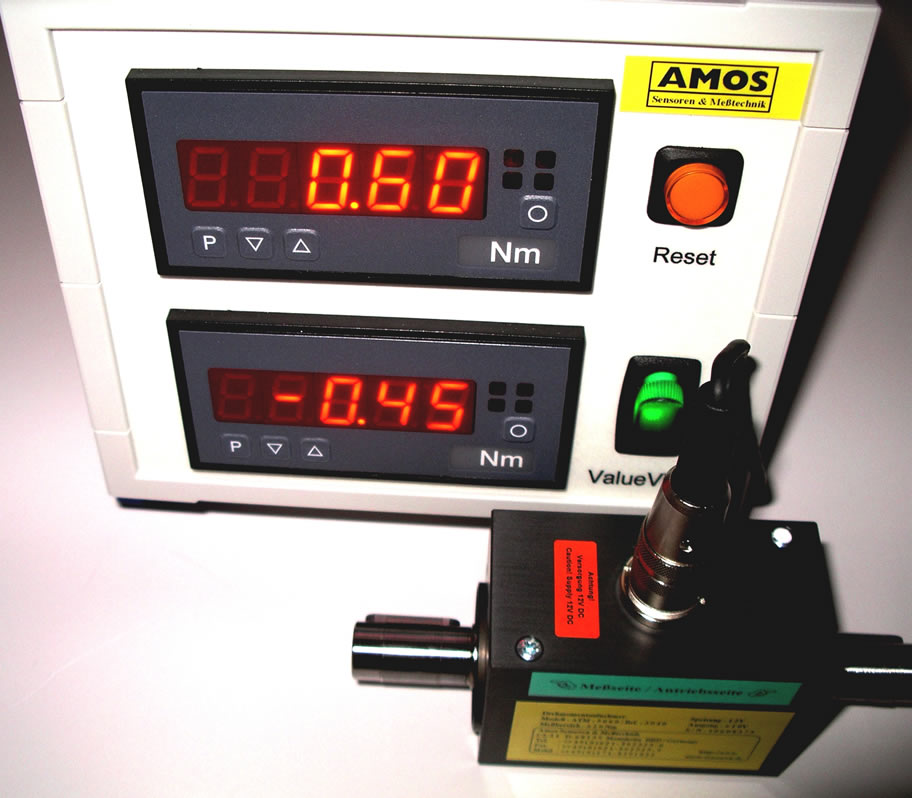

Digital Meters visualising the measured values of the above mentioned Torque Meters. Different models amongst portables, desk top and battery operated ones are available. Storage function, automatic range recognition, High / Low Limit adjustments and RS232 output are available as well as ISO- Norm Documentation.
