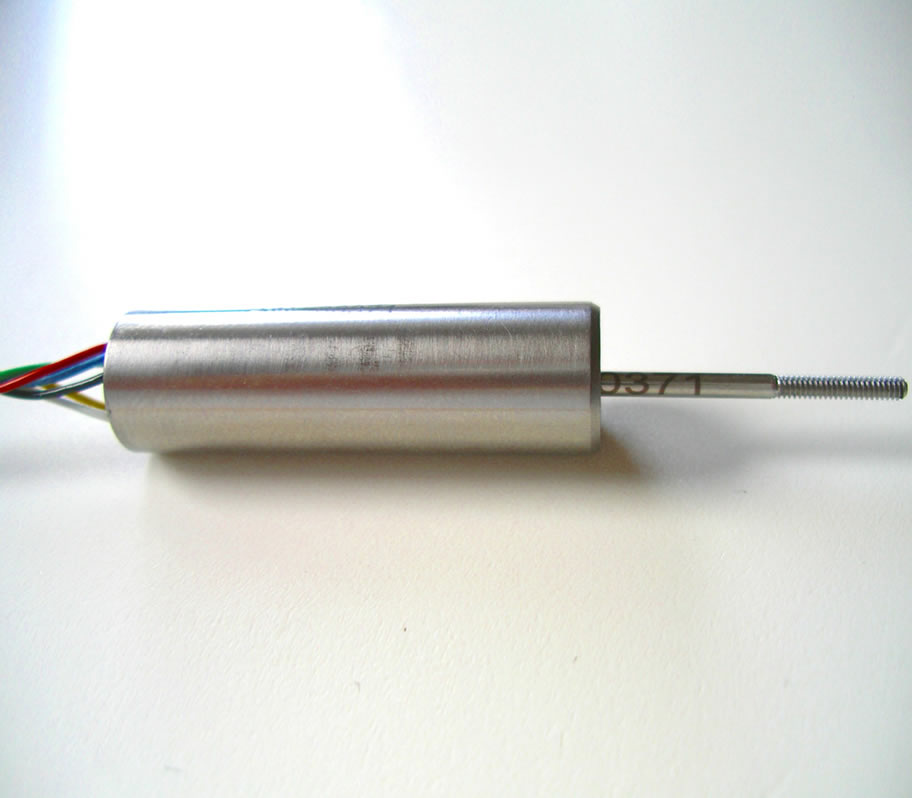

LVDT inductive displacement Transducers, from ±3mm to ±150mm, Ex. proof
Inductive displacement transducers incorporating a Differential- Transformer. Only 12mm diameter, not sensitive to Temperature and infinite resolution. Optional : Linearity 0,15%, applicable up to +200°C, Ex.- proof, seal proof up to 600 bar. All necessary Conditionings are available in single and multi- channel execution.
LVDT inductive Gage Head, from ±0,1mm to ±50mm, Micro Resolution
Gage Heads for different ranges and an excellent resolution and repeatability. The smallest housing is only 50 mm long and 6 mm in diameter. All necessary Conditionings are available with Current and Voltage outputs. Axial or radial gaging of the object is possible. Simple mounting.
LVDT inductive Gage Head, from ±0,1mm to ±150mm, ATEX, 2000bar compatible
Inductive Displacement and Gage Head LVDT based on Differential- Transformer technology. Fulfils all ATEX requirements for installation in Explosion safe areas, Gas turbines and Oil vessels. Moreover pressure safe housing for direct installation in hydraulic cylinders. Perforated executions can withstand up to 2000bar / +235°C. Diameter 12mm.
RVDT inductive Rotary Sensor, ±10° bis ±60°, ATEX- Ex. compatible, Options
RVDT, Rotary Displacement Sensor based on LVDT Technology. The rotation is performed without any force and is absolutely friction free for high dynamic and long term Applications. With a Diameter of 36mm it meets all ATEX- Ex. requirements. The LVDT´s includes reinforced Core Rods swivel bearings mountings.

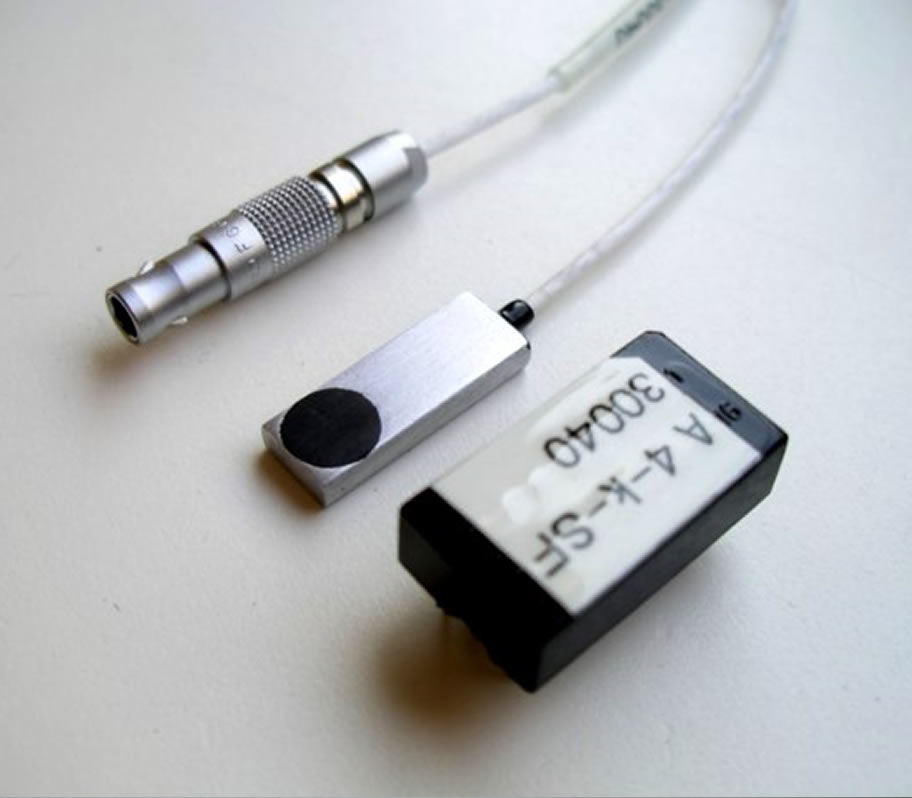

Inductive, contactless Displacement Transducers, Ranges from 0,8mm, 0,4μm Resolution
Contactless displacement measurement at Ranges from 0,8mm Full Scale at 0,4μm Resolution. Sensor Diameter starting at 5mm. Especially suitable for measurements at metallic surfaces such as Steel with only 0,1mm thickness. Different signal conditioners are available.

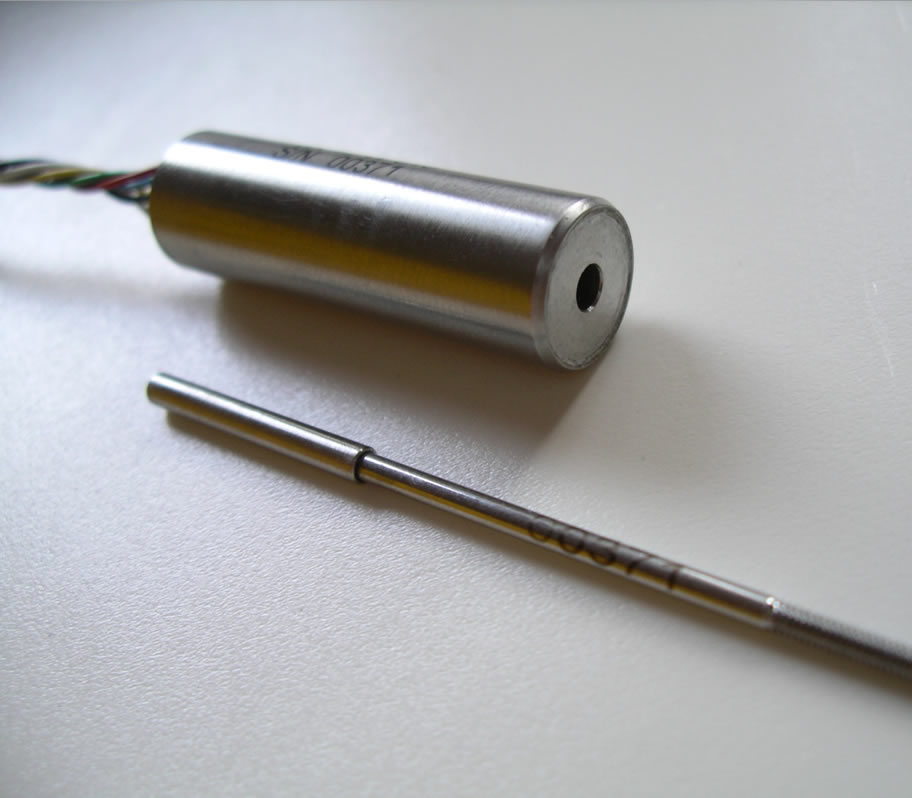

Model AWM - 41 - ATEX - Ex.

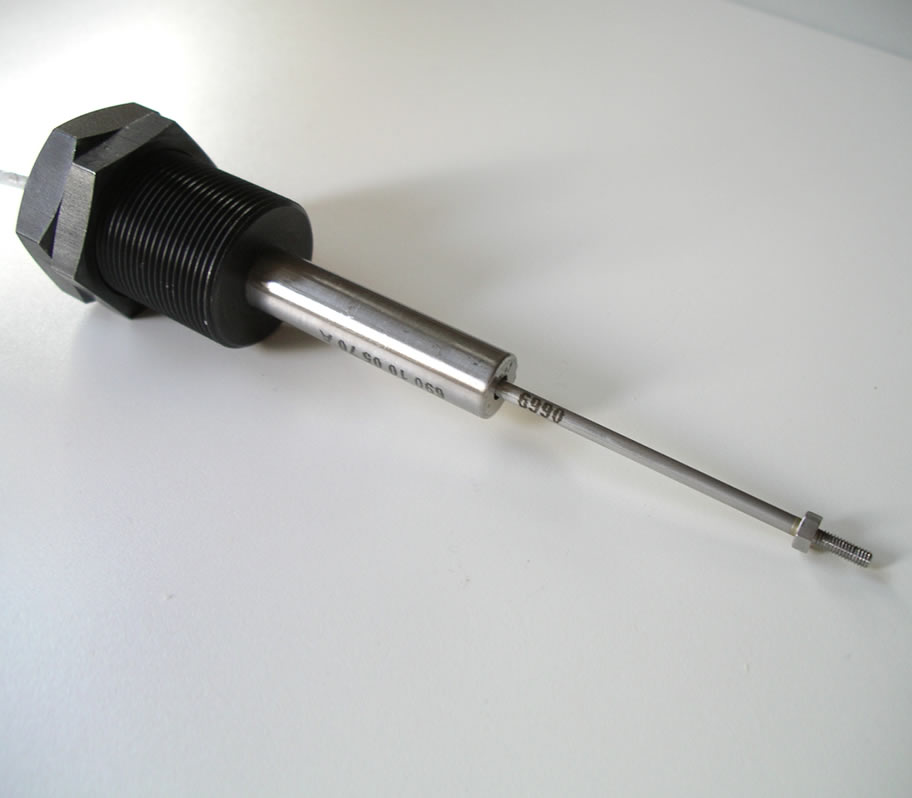

Model AWM - 41 - 2000bar
Model AWM - 43 - XXX

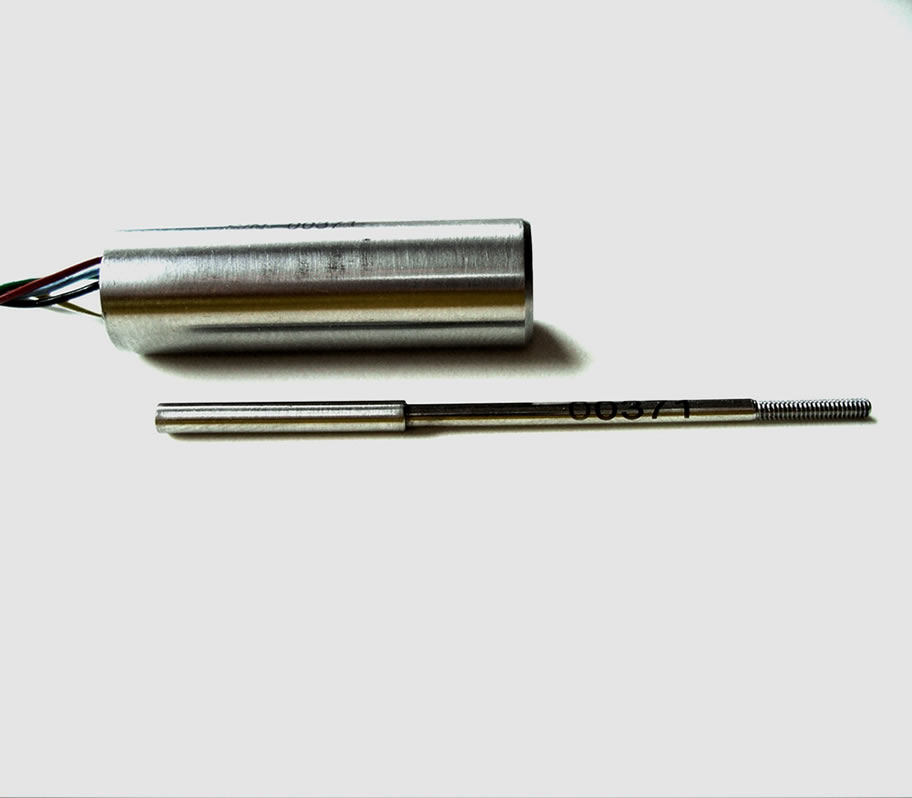

Displacement Sensor, LVDT
ATEX, Ex., Pressure safe 250bar
12mm Ø, length from 40mm
Static and high Dynamic
Accuracy : 0,15% FS
Temperature : −40°C to +200°C
Ranges ± : 0 - 3 to 150mm
Signal : ±10V / 4 - 20mA

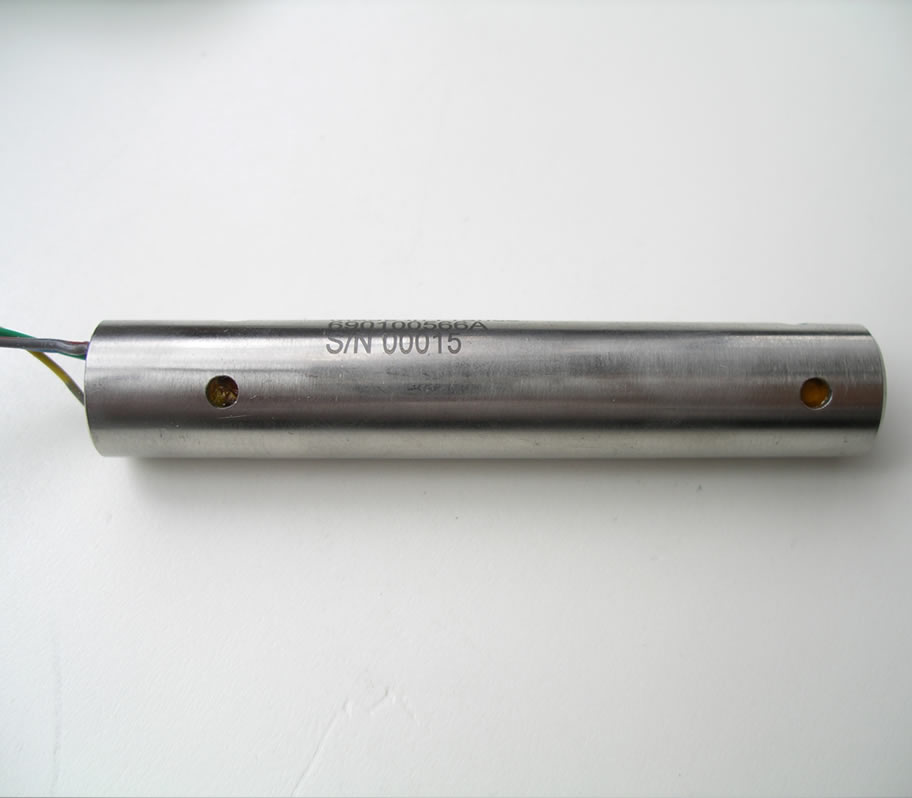

Displacement Sensor, LVDT
Pressure safe : 2000bar
12mm Ø, length from 40mm
Static and high Dynamic
Accuracy : 0,15% FS
Temperature : −40°C to +200°C
Ranges ± : 0 - 3 to 150mm
Signal : ±10V / 4 - 20mA

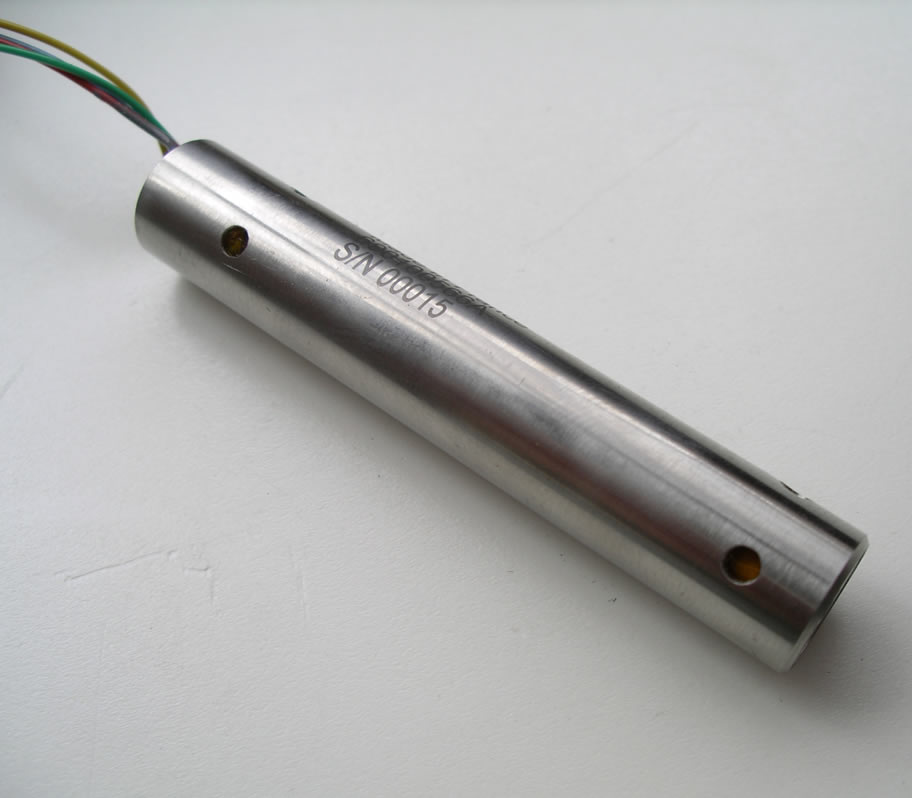

Displacement Sensor, LVDT
Pressure safe : 2000bar
12mm Ø, length from 40mm
Static and high Dynamic
Accuracy : 0,3% FS
Temperature : −40°C to +150°C
Ranges ± : 0 - 12 to 50mm
Signal : ±10V / 4 - 20mA

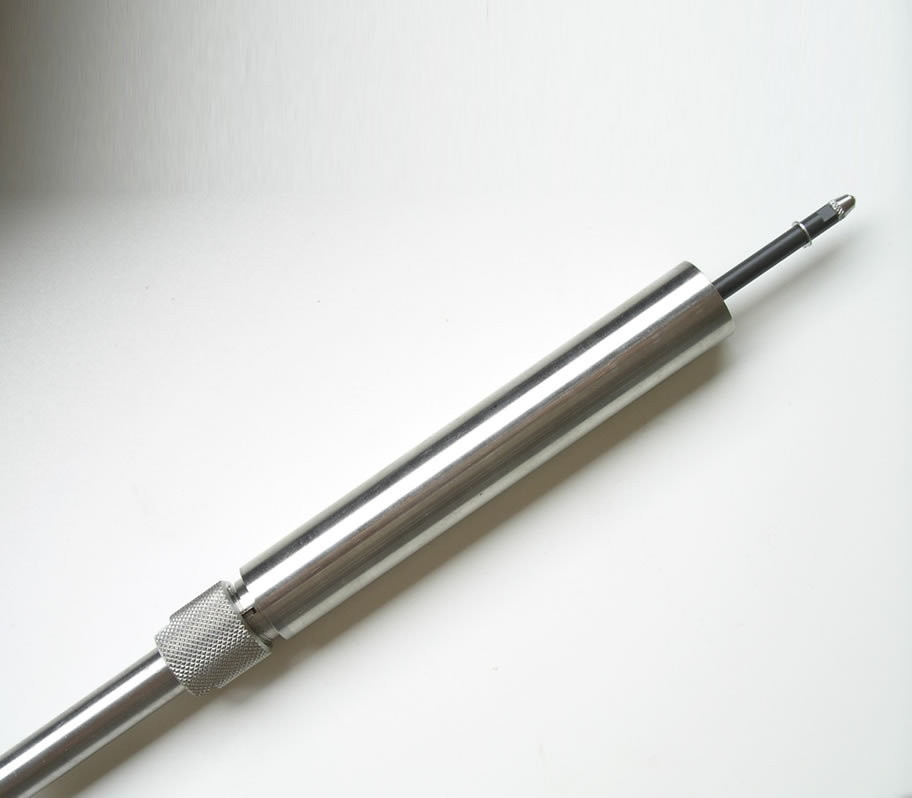

Model AWM - 41 - EP - XXX

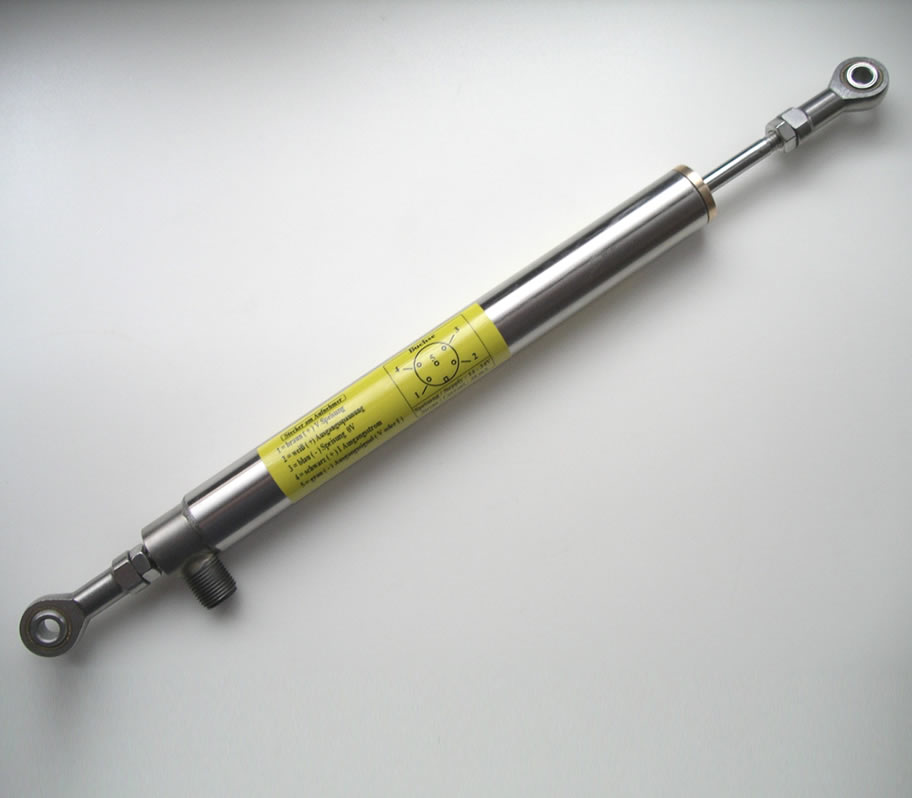

Model AWM - 46 - ATEX, Ex.

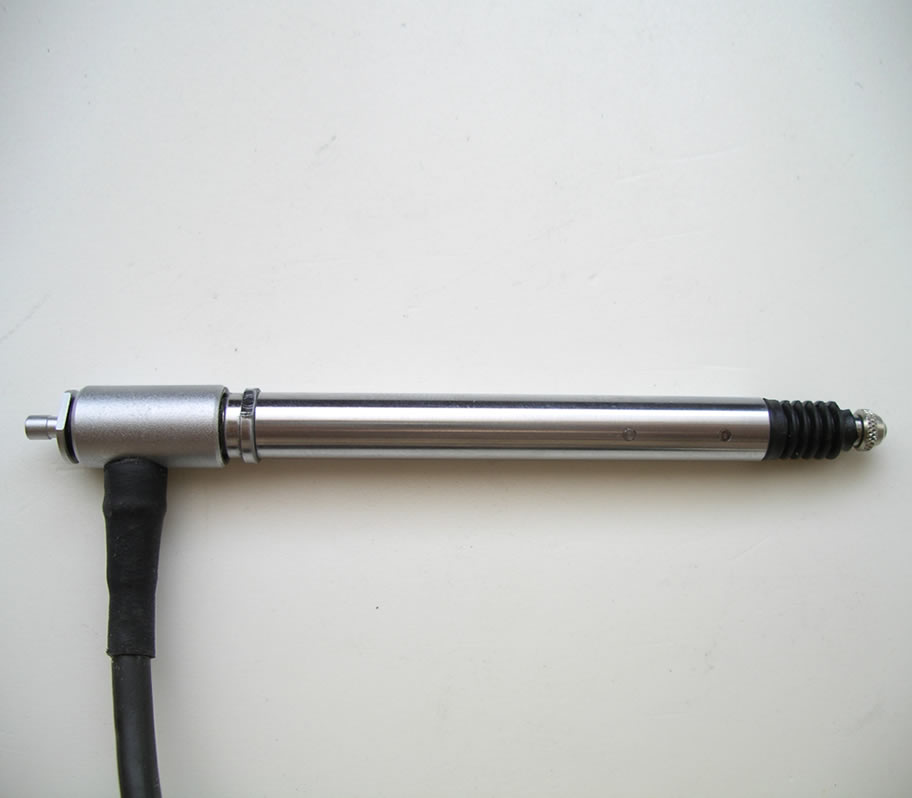

Model AWM - 47 - XXX

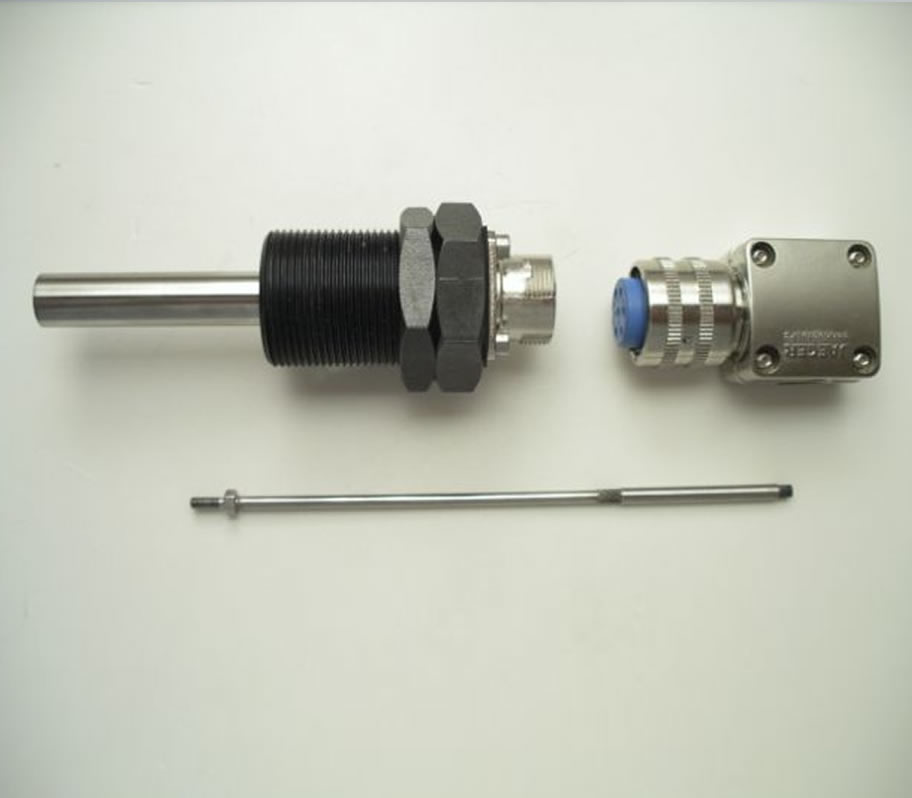

Displacement Sensor, LVDT
Static and high Dynamic same as
AWM - 41 - incl. EP- KIT,
20mm Ø Gage Head, Spring Loaded
Option : Bellows Protection
Core Guidance
Housing : 20mm Ø
Ranges ± : 0 - 7mm - 55mm
Temperature : −40°C to +200°C

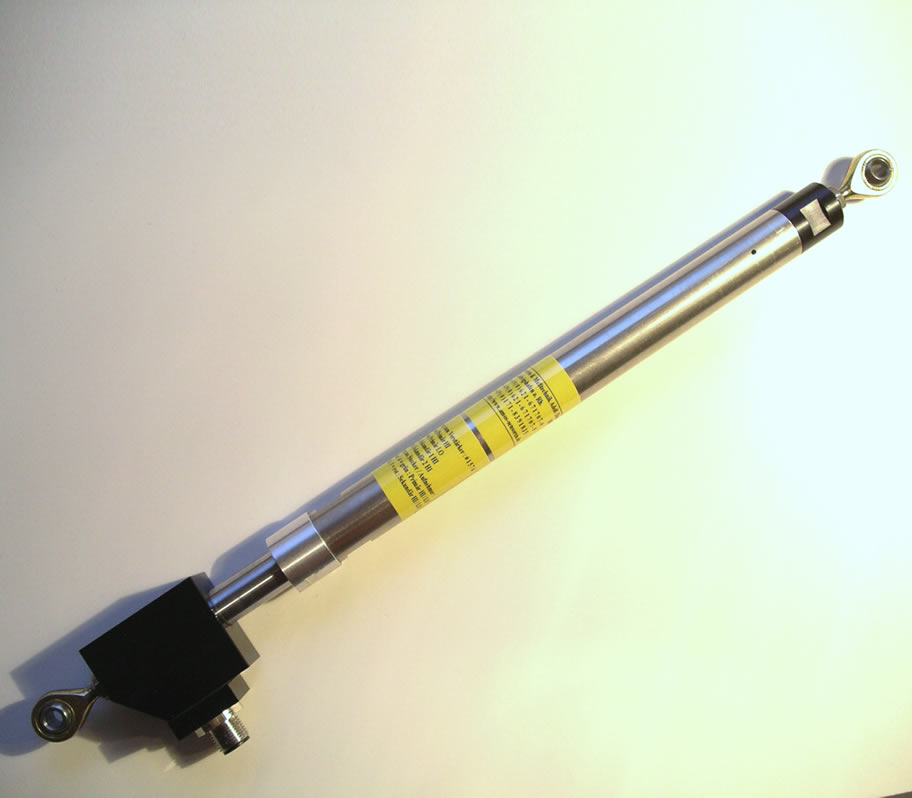

Displacement Sensor, LVDT
ATEX, Static and high Dynamic
same as AWM - 41 - incl. extreme
robust telescopic Core Guidance
Swivel Bearing Mountings
Ranges ± : 0 - 3 to 150mm
Temperature : −40°C to +85°C
Signals : External Conditioners

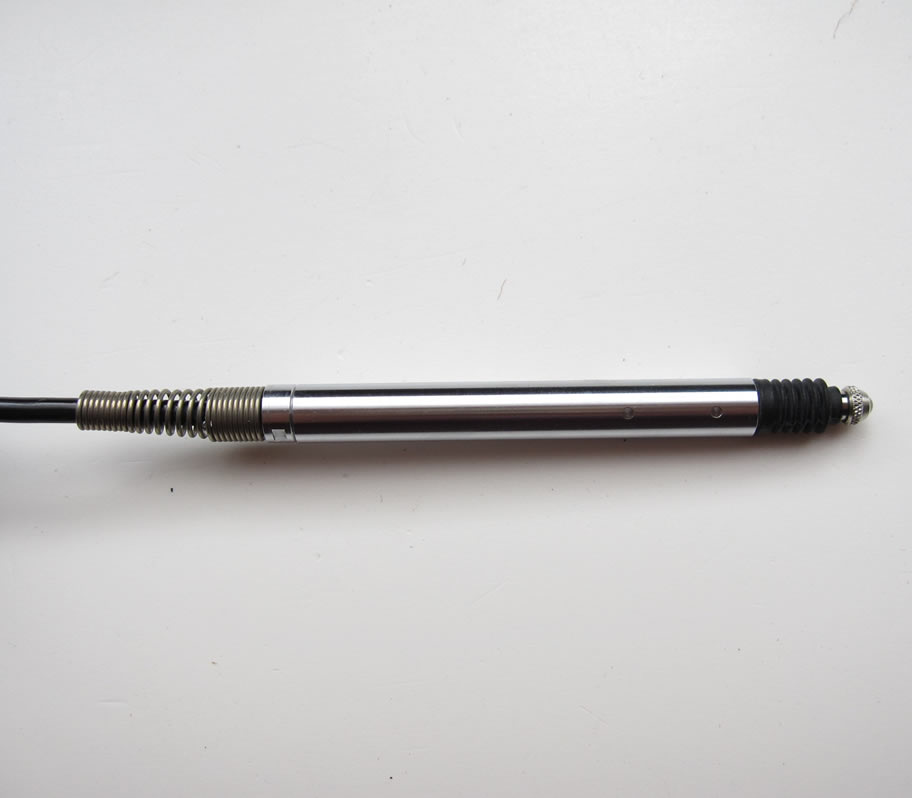

Displacement Sensor, LVDT
Gage Head, Bellows Protection
Spring Loaded, pneumatic
Bellows Protection
Ranges : 0 - 0,15 to 10mm
Temperature : −10°C to +65°C
8mm Ø, length > 40mm
Resolution : < 1μm

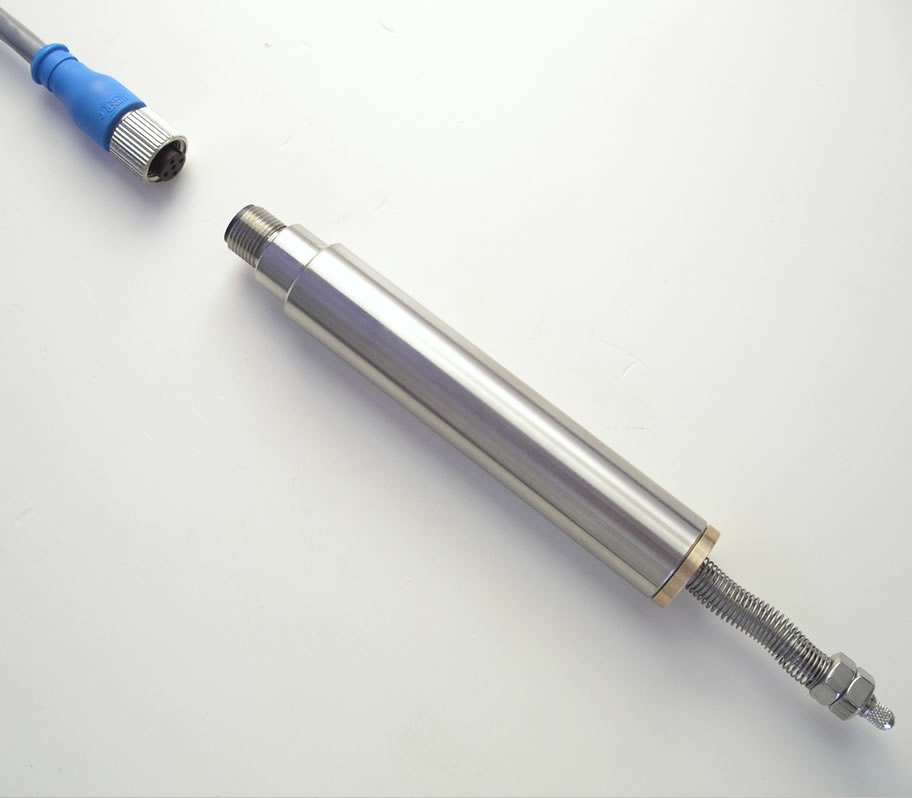

Model AWM - 44 - XXX

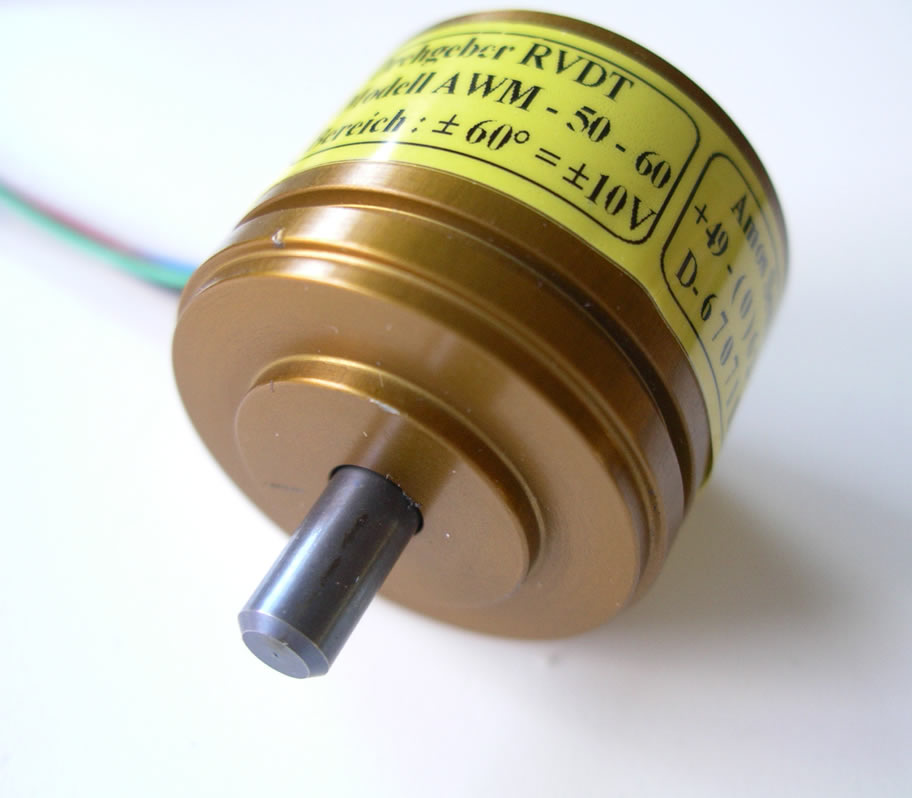

AWM - 50 - Drehgeber - ATEX
Model AWM - AK - XXX

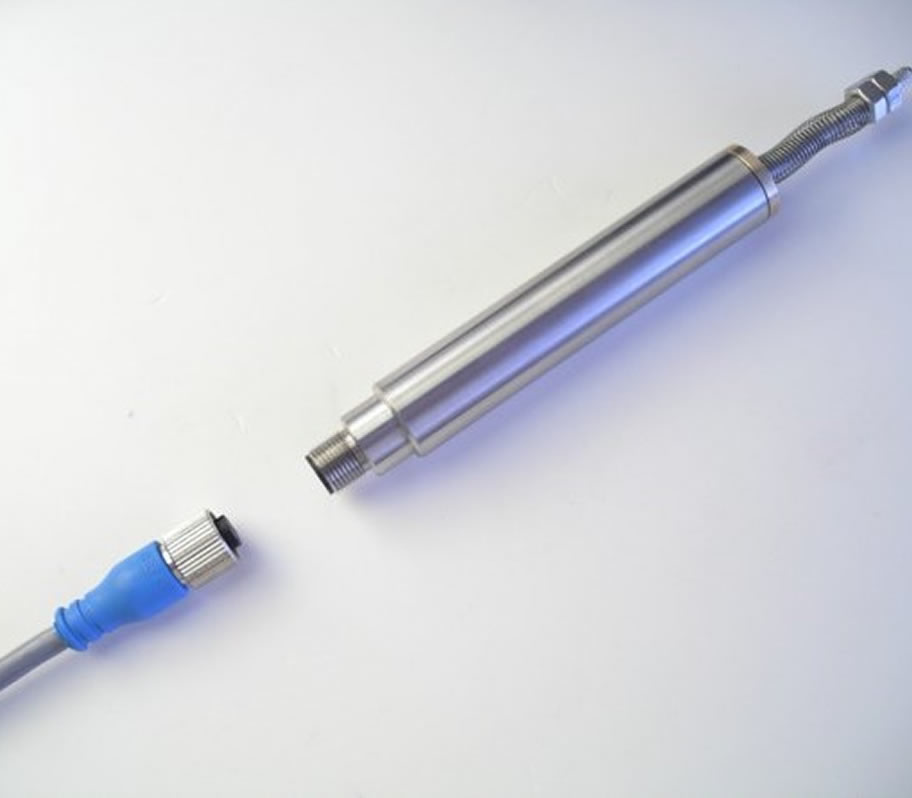

Displacement Sensor, LVDT
Static and high Dynamic Gage
Head, Spring Loaded
Ranges ± : 0 - 3 to 150mm
20mm Ø, Accuracy : 0,15% FS
Temperature : −40°C to +125°C
Integrated Conditioner
Signal : 0 - 10V and 4 - 20mA

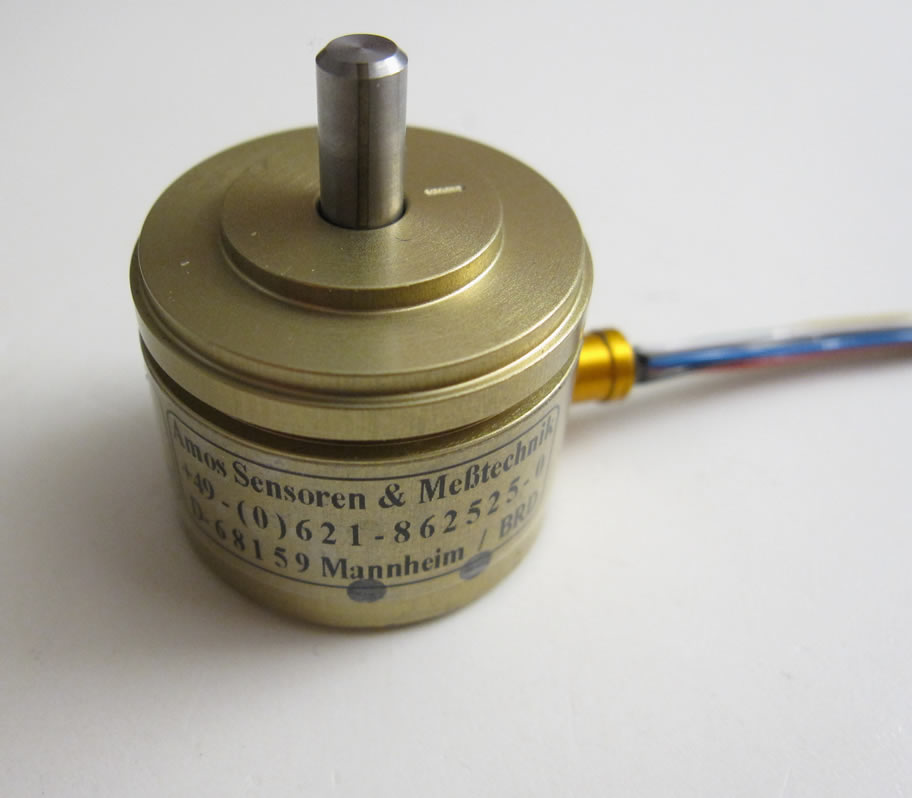

Rotary Displacement, RVDT,
ATEX, Ex. Static and Dynamic
Force and friction free rotation
Conditioner, ATEX protected
Signal : ±10V and 4 - 20mA
27mm and 36mm Ø
Angle Ranges ± : 10° to 60°
Temperature : −20°C to +100°C

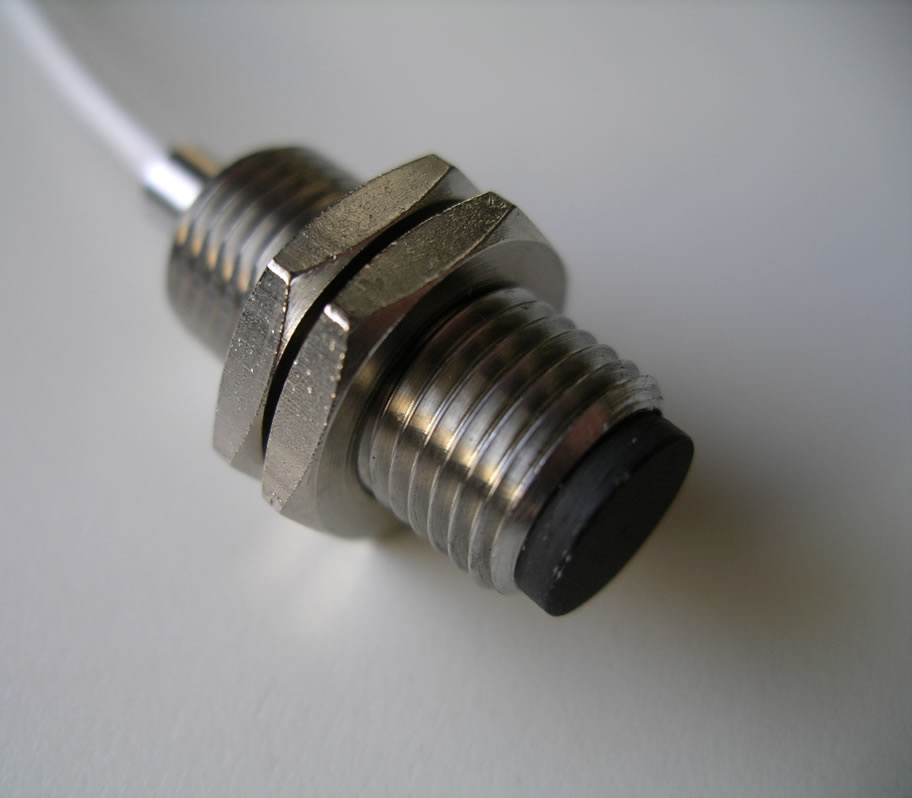

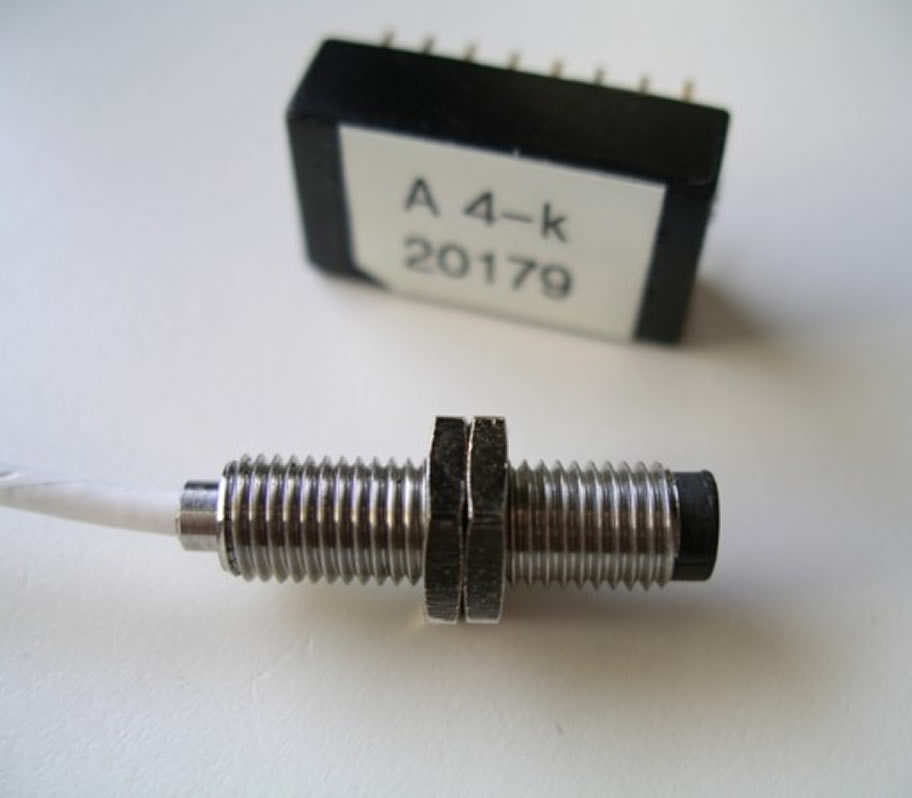

Displacement, Magnetic,
Contactless, Axial und Radial
Static und high Dynamic
Signal : 0 - 10V and 4 - 20mA
Housing : 3mm to 70mm Ø
Ranges : 0 - 0,4 to 30mm
μm Resolution, 10bar safe
Temperature : −20°C to +125°C
